D-SUB connector DE15 (DB15) 3 rows, wired, female with nuts, screw

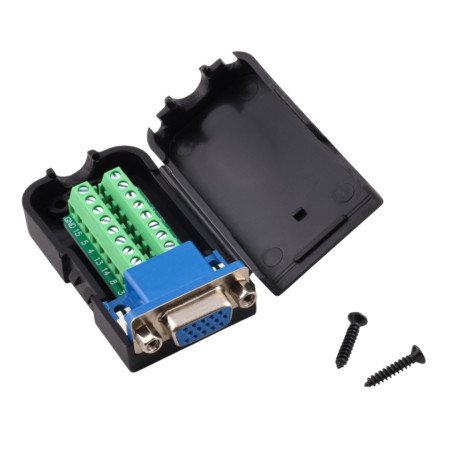

The D-SUB DE15 adapter (often referred to as VGA) allows for a quick and clear output of all 15 signals from a DE15 female connector to a screw terminal block. It is suitable for service purposes, prototyping and wiring without the need for soldering. The design includes a metal connector, an ABS plastic cover and fixing nuts for fixed mounting.

Technical specifications

• Connector type: D-SUB DE15 (VGA), female
• Number of pins: 15
• Pin arrangement: 3 rows
• Dimensions: 66 x 42 x 20 mm
• Pitch between pin rows: 2.84 mm
• Horizontal pin pitch in a row: 2.77 mm
• Wire connection: screw terminal block
• Material: metal connector + plastic cover (ABS)
• Mounting: integrated nuts for D-SUB screws

Functions and features

• DE15 female to terminal block adapter for individual wire connection
• Screw terminals allow for repeated wiring without soldering
• Plastic cover protects the terminal block and increases the mechanical resistance of the assembly
• Possibility of fixed attachment to the counterpart using D-SUB nuts
• The correct connector designation is D-SUB DE15; the designation DB15 for VGA is used in practice, but is not technically accurate.

Ideal for

• Service and diagnostics of devices with DE15 (VGA) interface
• Prototyping and laboratory connection of signals via D-SUB
• Industrial applications where screw connection of conductors is required
• Quick connection and testing of wiring without crimping or soldering

Package contents

• D-SUB DE15 female on terminal block with cover

Why choose this product?

• Clear routing of all 15 contacts to the terminals for clear wiring
• Mechanically protected design in ABS housing
• Standard DE15 interface with the option of fixed mounting using nuts
• Suitable solution for installations where serviceability and quick wiring changes are a priority

Installation and operating instructions

• Before connecting the wires, disconnect the device from the power supply and verify the connections according to your signal documentation.
• Observe the correct assignment of the DE15 pins to the individual terminals according to the markings on the terminal block.
• Strip the wires to the appropriate length and tighten the terminals carefully to avoid damaging the wire or terminal.
• After connection, close the cover and check that no wires are mechanically stressed.

Safety notice

• The product is intended for signal and low voltage applications according to the specific device; do not use it for direct connection to mains voltage.
• Do not make any connections under voltage; there is a risk of damage to the connected devices.
