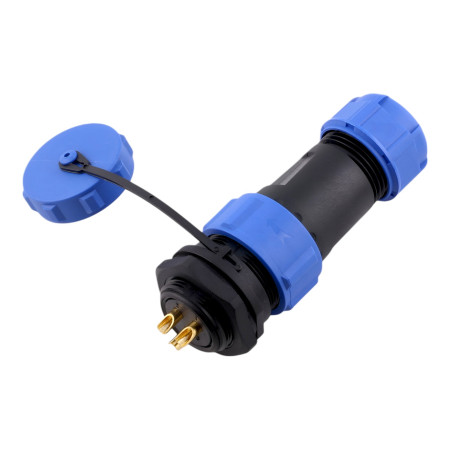

SP2110/SP2112 Waterproof IP68 Connector Cable
zoom_out_map
chevron_left chevron_right

SP2110/SP2112 panel mount, IP68 waterproof cable connector

Waterproof docking connector for wires with a diameter of 6 - 12mm. Gold-plated contacts.

5.84 €

5.84 € excl. VAT

5.842123 Tax excluded

i
The applied VAT rate is 0% for the country United States.
new_releases On the way
Download PDF

Waterproof docking connector for wires with a diameter of 6 - 12mm. Gold-plated contacts.

Type: SP2110/SP2112 2-pin 3-pin 4-pin 5-pin 5C-pin 7-pin 9-pin 12-pin
Rated current 30A 30A 30A 30A 15A 15A 5A 5A
Contact diameter 3mm 3mm 3mm 3mm 2mm 2mm 1mm 1mm
Maximum voltage 500v 500v 500v 500v 500v 500v 500v 400v
Contact resistance MΩ 1 1 1 1 2.5 2.5 5 5
Wire cross-section mm 2 /AWG ≤4.17/11 ≤4.17/11 ≤4.17/11 ≤4.17/11 ≤2/14 ≤2/14 ≤0.785/18 ≤0.785/18

Protection: IP68

Working temperature: -35 - 110°C

Relative humidity: 90% - 95%

Material: Polyamide

Package contents: 1x panel socket (female), 1x cable connector (male)

WEIPU
AM1179-2-PI
85369010
Housing material
Plastic
Waterproof grade
IP68
Construction
By soldering

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
