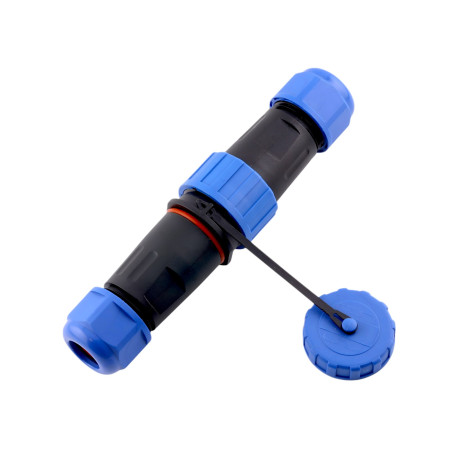

TY20 screw-on cable connector, IP68

Waterproof docking connector for 6 - 11.5mm diameter wires. Gold plated contacts.

Number of pins:

9.57 €

9.57 € excl. VAT

9.56605 Tax excluded

In stock

Quantity:

Download PDF

Waterproof docking connector for 6 - 11.5mm diameter wires. Screw-on design. Gold plated contacts.

Protection: IP68Operating

temperature: -20 - 110°CRelative

humidity: 90% - 95%Material

: Polyamide

Package includes male and female

Type: TY20	2-pin	3-pin	4-pin	5-pin	6-pin	7-pin
Diameter of contacts	2.8mm	2.8mm	2.8mm	1.8mm	1mm	1mm
Max. current	25A	25A	25A	10A	5A	5A
Max. voltage	380V	380V	380V	380V	250V	250V
Contact resistance	1mΩ	1mΩ	1mΩ	2mΩ	5mΩ	5mΩ
Max. cable cross-section	4mm2	4mm2	4mm2	1.5mm2	0.75mm2	0.75mm2

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
