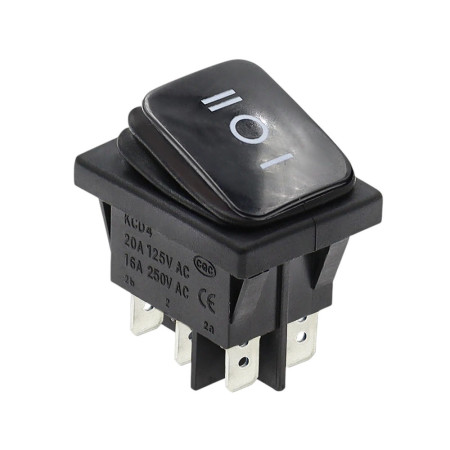

Rectangular rocker switch KCD4, ON-OFF-ON, IP65, black 250V/16A

The rectangular rocker switch type KCD4 for panel mounting is designed for switching circuits in three positions (I / O / II). Thanks to the IP65 protection, it is also suitable for applications with increased requirements for protection against dust and splashing water.

Technical specifications

• Type: KCD4
• Function: ON-OFF-ON (position I / O / II)
• Rated load: 16 A at 250 V AC
• Max. voltage: 250 V
• Mounting hole: 30 x 22 mm
• Dimensions: 31 x 25 x 35 mm
• Installation height (required depth in the panel): 28 mm
• Operating temperature: -25 to +80 °C
• Protection: IP65
• Connector: 6.3 mm Faston
• Number of pins: 6
• Design: black

Functions and features

• Three-position design for switching between two circuits with a center off position
• Position locking for stable switching state setting
• Cradle pictograms: I / O / II
• Panel mounting in a rectangular cutout
• Terminals for connection using 6.3 mm Faston flat connectors
• IP65 protection for use in environments with increased dust or splashing water

Ideal for

• Control panels and switchboard applications
• Industrial equipment and service control
• Power and switching circuits requiring three-position control
• Applications requiring IP65 protection on the front of the panel

Package contents

• Rocker switch KCD4

Why choose this product?

• Clearly defined ON-OFF-ON function with I/O/II marking
• Standardized panel mounting in a 30 x 22 mm hole
• Easy connection via 6.3 mm Faston
• IP65 protection for more demanding operating conditions

Installation and operating instructions

• Before installation, verify the mounting hole size of 30 x 22 mm and the required depth of space in the panel of 28 mm.
• For connections, use the corresponding 6.3 mm Faston connectors and wires sized for the current load of the application.
• Adapt the wiring to the specific ON-OFF-ON function according to the device diagram; we recommend verifying the pin layout before commissioning.

Safety notice

• The product is designed to operate with hazardous voltage (up to 250 V AC). Installation and servicing should only be carried out with the power disconnected and by a suitably qualified person.
• Follow the requirements for fusing and sizing wires according to applicable standards and parameters of your application.
