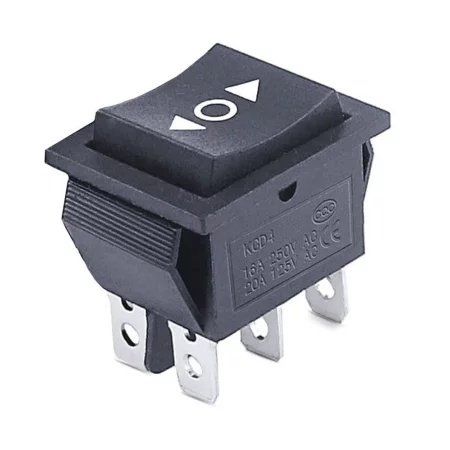

Rocker switch KCD4 rectangular, ON-OFF-ON, momentary (non-latching), arrows, black, 250V/15A

Rectangular rocker switch type KCD4 is designed for panel mounting and switching circuits in three positions ON-OFF-ON. The design is non-latching (momentary), i.e. after release the lever returns to the initial position. Arrow pictograms < o > facilitate operator orientation during directional control.

Technical specifications

• Type: KCD4
• Contact function: ON-OFF-ON (switch)
• Version: without locking (torque)
• Rated load: max. 250 V / 15 A
• Rated load (alternative): 125 V / 20 A
• Number of pins: 6-pin
• Connectors: Faston 6.3 mm
• Protection: IP20
• Color: black
• Markings on the cradle: arrows < o >
• Mounting hole (cut-out): 29.5 x 22.4 mm
• Body dimensions: 31 x 25 x 35 mm
• Installation height (required depth in the panel): 28 mm

Functions and features

• Three-position ON-OFF-ON switch for direction selection or two modes with neutral position
• Non-detenting torque design for short-term operation
• Panel mounting in a rectangular cutout
• Terminals for quick connection using 6.3 mm Faston flat connectors
• Pictograms on the cradle for clear position identification

Ideal for

• Control panels and switchboards
• Directional control of DC motors (e.g. forward/reverse) in combination with appropriate wiring
• Device mode control with center off position
• Industrial and workshop applications, test fixtures

Package contents

• 1x KCD4 rocker switch

Why choose this product?

• Standard KCD4 format for easy replacement in existing panels
• Torque version suitable for control where return to the starting position is required
• Simple connection via 6.3 mm Faston and quick panel mounting
• Clearly defined mounting hole and installation depth for panel design

Installation and operating instructions

• Before installation, verify the mounting hole size of 29.5 x 22.4 mm and the required depth in the panel of 28 mm.
• For connections, use the corresponding 6.3 mm Faston connectors and wires sized for the current load of the application.
• Verify the connection of the contacts by measurement or according to the diagram of your application (ON-OFF-ON, 6 pins).

Safety notice

• When using the product on a mains voltage of 220–250 VAC, it is necessary to follow the principles of working on electrical equipment. Carry out installation and service only when the power supply is disconnected.
• Observe the required insulation distances, fuses and enclosures according to the specific application. IP20 enclosure does not protect against water ingress.
