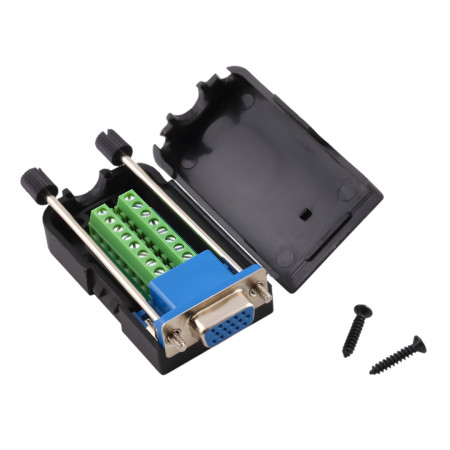

D-SUB connector DE15 (DB15) 3 rows, wired, female with screws, screw-type

This D-SUB DE15 connector (often incorrectly referred to as DB15/VGA) allows for quick, solderless wire connections using screw terminals. It is suitable for service purposes, prototyping, and wiring conversion to a standard 15-pin female interface with locking nuts.

Technical specifications

• Connector type: D-SUB DE15 (HD15), female , 3 rows of contacts
• Mechanical locking: integrated nut (screwed to the counterpart)
• Dimensions: 76 × 42 × 20 mm
• Pitch between pin rows: 2.84 mm
• Horizontal pin pitch in a row: 2.77 mm
• Material: metal connector + plastic cover (ABS)
• Wire connection: screw terminal block (no soldering)

Functions and features

• Quick termination of wiring on DE15 using terminals, suitable for repeated wiring
• Mechanical protection and cable strain relief in a plastic housing
• Screw locking of the connector to the mating piece for a stable connection
• Designation: in practice you may encounter the names "DB15", "VGA", "Cannon-9" or "Canon9"; the technically correct designation is D-SUB DE15

Ideal for

• Service and diagnostic tools with DE15 interface
• Prototyping and lab wiring without soldering
• Industrial installations where screw-type connector mounting is required
• Cabling conversion to D-SUB DE15 in cable harnesses

Package contents

• D-SUB DE15 female with terminal block in housing

Why choose this product?

• Allows for soldering-free wire connection using a terminal block
• Standard D-SUB mechanics with nuts for a firm fit
• Combination of metal connector and ABS housing for general technical use
• Suitable solution for quick assembly, service and testing

Installation and operating instructions

• Before assembly, verify the pin assignment according to your application and device documentation.
• Strip the wires appropriately and tighten the terminals so that they do not loosen due to vibration.
• After connection, close the cover and check that the wires do not come into contact with the metal part of the connector outside the designated points.

Safety notice

• The product is intended for signal connection; before use, verify that the voltage and current ratings are appropriate for your application.
• Perform installation with the device power disconnected
