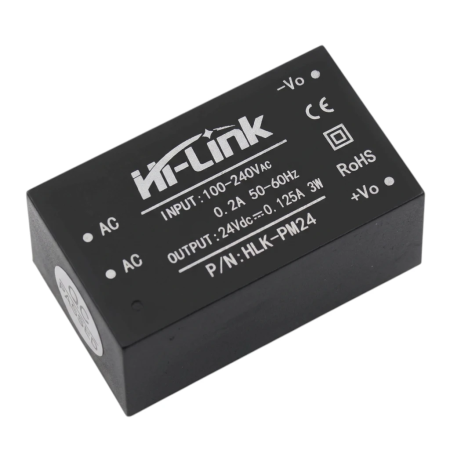

Hi-Link HLK-PM24 24V 0.125A 3W AC-DC module
zoom_out_map
chevron_left chevron_right

Power supply 24V, 0.125A, 3W, HLK-PM24

5.52 €

5.52 € excl. VAT

5.518588 Tax excluded

Including 0.03 € for ecotax

check In stock
Download PDF

The Hi-Link HLK-PM24 power supply module is used to convert AC mains voltage to a DC output voltage of 24 V. It is a compact AC-DC module designed for integration into electronic devices, control circuits and other applications where a small integrated power supply with a galvanically isolated output is required.

Technical specifications

  • Model: HLK-PM24
  • Type: AC-DC power module
  • Rated power: 3W
  • Output voltage: 24 V DC
  • Output current: 0.125A
  • Input voltage: 100 to 240 V AC
  • Input voltage range: 90 to 264 V AC
  • Input frequency: 50 to 60 Hz
  • Design: isolated switching power supply module
  • Mounting design: module for installation in the device

Functions and features

  • Conversion of AC mains voltage to stabilized DC voltage for powering electronic circuits.
  • Compact closed design suitable for integration on a board or in a device.
  • The insulated design separates the input and output sections.
  • The modular design simplifies the design of a built-in power supply without the use of a separate mains transformer.
  • Intended for fixed installation as part of electronic equipment.

Ideal for

  • Built-in power supplies for electronic devices.
  • Control and automation modules.
  • Power supply for circuits requiring 24 V DC.
  • Industrial and hobby electronics in the design of mains-powered devices.

Package contents

  • 1x Hi-Link HLK-PM24 power module

Why choose this product?

  • Clearly defined output parameters of 24 V DC and 0.125 A.
  • Wide input mains voltage range for universal use.
  • Insulated design suitable for built-in power applications.
  • Compact modular solution without the need to design your own power supply from scratch.

Installation and operating instructions

  • Only install the module in a device or enclosure that provides protection against touching live parts.
  • When designing the wiring, ensure the correct connection of the input AC terminals and output DC poles.
  • Ensure sufficient cooling and mounting conditions appropriate for the operation of the power module.
  • Perform installation with the power disconnected.
  • The product is intended for professional installation.

Safety notice

  • The module operates with a mains voltage of 100 to 240 V AC, which poses a risk of electric shock.
  • Incorrect connection may lead to a short circuit, overheating or damage to the connected device.
  • Do not cover the module with thermal insulation material or operate it in conditions that prevent heat dissipation.
  • Do not use after mechanical damage, exposure to moisture or insulation damage.
  • Installation and commissioning must be carried out by a person with appropriate electrical qualifications.
OEM
AM5576
85044090
Input voltage
100-240 V AC, 50/60 Hz
Output voltage
24 V DC
Output current
0,125 A
Output power
3 W
Waterproof grade
IP20

Introduction

This manual provides general guidelines for the installation and maintenance of switched-mode power supplies. It is important to follow all safety instructions and, if necessary, consult specific instructions with the seller.

1. Safety Guidelines

  • Professional Installation – The installation and maintenance of the power supply should be performed by qualified personnel with appropriate knowledge and experience in the field of electrical engineering.
  • Disconnect from the Network – Before starting any work on the power supply, always disconnect the device from the electrical network and ensure that it cannot be inadvertently connected.
  • Protective Equipment – When handling the power supply, use appropriate personal protective equipment, such as insulating gloves and safety glasses.
  • Grounding – Ensure that the power supply is properly grounded to guarantee the safety and proper functioning of the device.

2. Installation of the Power Supply

  • Placement – Install the power supply in a dry, well-ventilated area protected from direct sunlight, humidity, and extreme temperatures.
  • Mounting – Secure the power supply to a solid surface using suitable mounting hardware to ensure stability and minimize vibrations.
  • Cooling Space – Ensure there is sufficient space around the power supply for heat dissipation and proper ventilation to prevent overheating of the device.

3. Electrical Connection

  • Input Connection – Connect the power supply to the electrical network according to the following designations:
    • L (Live): Phase conductor (usually brown or black)
    • N (Neutral): Neutral conductor (usually blue)
    • Ground (Grounding symbol): Protective conductor (usually green-yellow)
  • Output Connection – The power supply may have one or more output terminals labeled as V+ and V-. If multiple output terminals are available and full power is required, these outputs must be connected in parallel to ensure an even current distribution.

4. Maintenance of the Power Supply

  • Regular Inspections – Perform regular visual inspections of the power supply to detect any signs of damage, such as overheating, corrosion, or loose connections.
  • Cleaning – Keep the power supply clean and free of dust. Always disconnect the device from the network before cleaning. Use a dry or slightly damp cloth for cleaning. Do not use aggressive cleaning agents.
  • Ventilation Check – Ensure that the ventilation openings are not blocked and that any fans (if present) are functioning properly.
  • Functionality Testing – Regularly test the output voltage and current to ensure the proper functioning of the power supply.

5. Warnings

  • Risk of Electric Shock – Power supplies operate with high voltage, which can cause serious injury or death. Always adhere to safety instructions and procedures.
  • Repairs – Any repairs should only be performed by qualified personnel. Do not attempt repairs without the necessary qualifications.
  • Replacement of Components – When replacing components, only use original spare parts recommended by the manufacturer.

By following the above guidelines, you ensure the safe and reliable operation of the switched-mode power supply.
