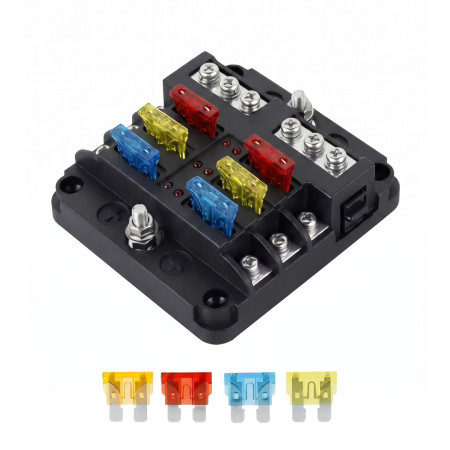

QR1714 Fuse Block for 6 Blade Fuses, 32V DC

The QR1714 fuse block is designed for the distribution and protection of multiple DC electrical circuits in automotive, marine, and other low-voltage electrical systems. It accommodates up to six flat blade fuses, offering clear wire connections via screw terminals and fuse status monitoring using LED indicators.

Technical Specifications

• Model: QR1714
• Product type: Fuse block for flat blade fuses
• Number of fuse slots: 6
• Rated voltage: 32V
• Rated current: 100A
• Material: ABS and metal
• Product dimensions: 87.75x85x36.5 mm
• Package dimensions: 125x94x46 mm
• Gross package weight: 210g
• Certification: CE

Features

• Six separate slots for flat blade fuses.
• A transparent cover protects the fuse section and allows visual inspection of the installed fuses.
• Screw terminals for wire connection and power distribution.
• Built-in LED indicators to signal a blown fuse.
• Label stickers for marking individual protected circuits.
• Snap-on cover system with a black side release latch.
• Mounting holes in the base for secure attachment to a surface.

Ideal For

• Automotive electrical systems with separately protected circuits.
• Marine and RV low-voltage power distribution.
• Additional lighting, auxiliary appliances, and vehicle accessories.
• Service and installation work when expanding an existing fuse setup.

Package Contents

• QR1714 fuse block with a transparent cover.
• Set of flat blade fuses.
• Set of label stickers.
• Mounting screws.

Why Choose This Product

• Allows centralizing the protection of multiple DC circuits into a single mounting unit.
• The transparent cover makes it easy to check the fuse status without disassembling the entire block.
• LED indication helps quickly identify a blown fuse.
• Screw connections provide secure mechanical attachment of wires in the distribution section.
• Fuses, label stickers, and mounting screws are included in the package.

Installation and Operation Instructions

• Perform installation only when the power supply is disconnected.
• Mount the fuse block on a solid and electrically safe surface.
• Equip each protected circuit with a fuse rated appropriately for the wire used and the connected device.
• After wiring, check the tightness of the screw terminals and the correct connection polarity.
• The product is designed for low-voltage DC installations, not for connection to mains voltage.

Safety Warnings

• Incorrect wiring or undersized wires lead to a risk of overheating, short circuits, and damage to the installation.
• Do not exceed the rated values specified for the product and the fuses used.
• A damaged cover, deformed terminals, or signs of overheating are reasons to take the product out of service.
• Installation in a vehicle or boat must be performed by a person with knowledge of electrical wiring and DC circuit protection.
