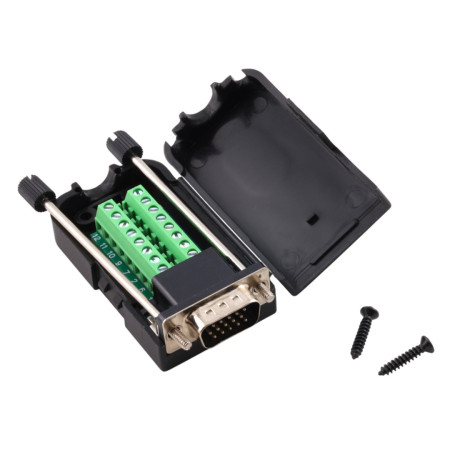

D-SUB connector DE15 (DB15) 3 rows, cabled, male with screws, screw-type

The D-SUB DE15 connector (often incorrectly referred to as DB15/VGA) allows for quick, solderless wire connections using screw terminals. It is suitable for service, prototyping, and wiring conversion to a standard 15-pin male interface with locking screws.

Technical specifications

• Connector type: D-SUB DE15 (15 pins, 3 rows), male
• Fixing: locking screws on the connector
• Wire connection: screw terminal block
• Dimensions: 76 × 42 × 20 mm
• Pitch between pin rows: 2.84 mm
• Horizontal pin pitch in a row: 2.77 mm
• Material: metal connector, plastic cover (ABS)

Functions and features

• Converting DE15 connector to terminal block for easy connection of individual signals
• Solderless assembly, suitable for repeated wiring changes
• ABS cover protects terminals and wires against mechanical damage
• Locking screws improve the mechanical stability of the connection with the counterpart

Ideal for

• Service and test fixtures for devices with DE15 interface
• Prototyping and laboratory wiring of signal lines
• Connecting cabling to D-SUB without manufacturing a special cable
• Industrial and measurement applications using 15-pin D-SUB interface

Package contents

• D-SUB DE15 male with terminal block in housing

Why choose this product?

• Technically correct DE15 design (15 pins in 3 rows) for compatibility with common counterparts
• Quick and clear wiring via screw terminals
• Compact dimensions and mechanical locking of the connector with screws
• Suitable solution for temporary and more permanent installations without soldering

Installation and operating instructions

• Before connecting the wires, loosen the terminal screws, insert the stripped wire and tighten the screw with adequate force.
• We recommend verifying the pin assignment according to your application and device wiring diagram.
• After connecting the wires, close the cover and secure it with the included screws.
• When connecting to the mating piece, tighten the connector locking screws for stable contact.

Safety notice

• The product is intended for signal and low voltage applications; do not use it for direct connection to mains voltage.
• Before handling, disconnect the device from the power supply and prevent short circuits between the terminals.
• Ensure strain relief for the cabling so that the wires do not come loose in the terminals.
