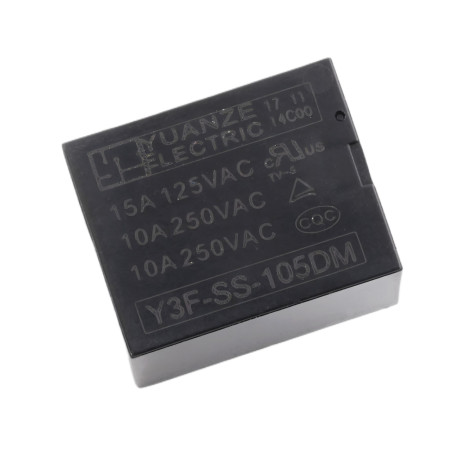

Relay Y3F-SS-105DM 5V DC/250V AC 10A, 4-pin

The electromechanical relay Y3F-SS-105DM is designed for switching loads using a low-voltage control signal of 5 V DC. It is suitable for simple switching circuits, automation and power supply branches where it is necessary to galvanically separate the control part from the switched circuit.

Technical specifications

• Model: Y3F-SS-105DM
• Type: electromechanical relay
• Number of pins: 4
• Coil control voltage: 5 V DC
• Coil resistance: 70 Ω
• Coil power consumption: 0.36 W
• Max. switching voltage: 250 V AC
• Max. switching current: 10 A
• Dimensions: 19.6 x 15.4 x 15.5 mm

Functions and features

• Switching loads up to 250 V AC at currents up to 10 A
• 5V DC coil control for use with common logic and control circuits
• Electromechanical design with galvanic isolation between coil and contacts
• Compact dimensions suitable for installation in equipment with limited space

Package contents

• Relay Y3F-SS-105DM 5V DC/250V AC 10A, 4-pin

Safety notice

• There is a risk of electric shock when switching mains voltage 230–250 V AC. Only carry out assembly and connection when the power supply is disconnected.
• Maintain sufficient insulation distances and use wires and terminals rated for the appropriate voltage and current.
• Do not exceed the maximum switching voltage and current; for inductive loads, consider using appropriate protective elements.
