D-SUB connector DE25 (DB25) cable metal, male with screws/nuts, screw-type

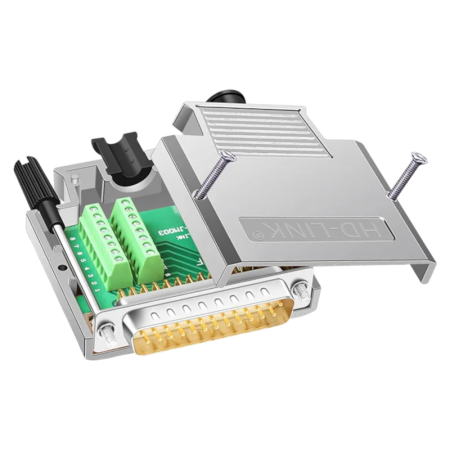

The metal D-SUB DB25 cable connector (male) with screw cover is designed for terminating multi-core cables and creating a removable connection in applications with a DB25 interface. The screw/nut design allows for a solid mechanical locking of the connector and cable strain relief.

Technical specifications

• Connector type: D-SUB DB25
• Design: wired, metal body/cover
• Gender: male (male)
• Number of pins: 25
• Contact arrangement: 2 rows
• Cover mounting: screw-on
• Mechanical locking in connection: screws/nuts
• Cable grommets: 4 pcs (for diameters 5 mm, 6 mm, 7.5 mm, 8.5 mm)
• Dimensions (according to the picture): approx. 57 mm (width), 56 mm (length), 16 mm (height)

Functions and features

• Metal cover for increased mechanical resistance during cable installation
• Screw-on design allows for repeated opening and service intervention
• Interchangeable grommets for adapting cable diameter and basic strain relief
• Screws/nuts for tight tightening of the connector to the mating piece and limiting spontaneous loosening

Ideal for

• Production and repair of cables with DB25 interface
• Industrial equipment, measuring technology and control systems
• Service and laboratory cabling where mechanical connector locking is required

Package contents

• 1× D-SUB DB25 connector (male) with screw-on metal cover
• 4× cable gland (5 mm, 6 mm, 7.5 mm, 8.5 mm)
• 2× screw
• 2× nuts

Why choose this product?

• Standard DB25 design for compatibility with common counterparts
• Metal screw cover suitable for installations with higher demands on mechanical resistance
• Possibility to choose the bushing according to the cable diameter
• Mechanical locking of the connector using screws/nuts

Installation and operating instructions

• Before installation, select a grommet according to the cable diameter and fit it into the housing outlet.
• Shorten the wires to the required length, connect them to the connector contacts and check the correct signal sequence.
• After connection, close the cover, tighten the screws and check that the cable is not mechanically stressed in the cover.
• When connecting to the mating piece, use screws/nuts to firmly secure the connector.

Safety notice

• The product is intended for signal and data connection; disconnect the device from power before handling.
• Make sure to connect the pins correctly according to the interface used to avoid damaging the connected devices.
• Avoid short circuits between conductors and contacts with conductive parts of the housing.
