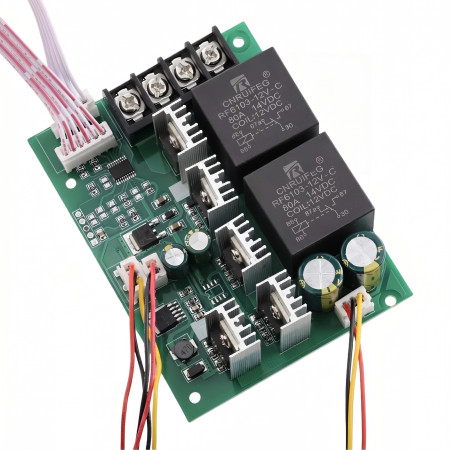

DC motor speed controller 9-60V DC, 60A

The PWM controller is designed for controlling the speed of a DC motor in the supply range of 9 to 60 V. The module uses continuous regulation in the range of 0 to 100% and is equipped with a digital display to display the set regulation level. The assembly includes a potentiometer with a control knob and a separate rocker switch. The design with power elements on the board and screw terminals is suitable for installation in equipment and technical applications with DC motors.

Technical specifications

• Product type: PWM DC motor speed controller
• Designed for: DC motor
• Working voltage: 9-60V
• Speed control range: 0-100%
• Maximum current: 60 A
• Rated current: 35 A at 12 V
• Output: linear under load
• Display: digital, three-digit
• Connection: screw terminal block for motor and power supply
• Terminal marking: 2x motor, negative power pole, positive power pole
• Board size: 100 × 76 mm
• Mounting hole spacing in the direction of the longer side: 90 mm
• Mounting hole spacing in the direction of the shorter side: 65 mm
• Display size: 23 × 14 mm
• Potentiometer shaft diameter: 6.8 mm
• Model designation on the base: Speed controller 40A

Functions and features

• Electronic PWM speed control of a DC motor
• Digital display of the regulation setpoint
• Control via external potentiometer with knob
• Separate switch in cable version
• Board equipped with power components with heatsinks
• Screw terminals for fixed connection of power supply and motor
• The product requires a connected load, it should not be tested without a load.

Ideal for

• Speed control of DC motors in workshop and hobby applications
• Installation in devices with DC drive
• Motor control in technical projects where manual power adjustment is required

Package contents

• PWM control module on a printed circuit board
• Potentiometer with connecting wire
• Control knob
• Digital display with connection cable
• Rocker switch with wires

Why choose this product?

• Allows DC motor control over a wide operating voltage range
• Digital display simplifies repeated adjustment of the control level
• Terminal connections and separate controls make integration into a panel or cabinet easy
• The design is intended directly for powering and controlling a DC motor

Installation and operating instructions

• Connect the motor to the two terminals marked for the motor and the power supply to the negative and positive terminals.
• Observe the correct polarity of the power supply.
• Operate the controller only with a connected load.
• When installing, ensure sufficient ventilation and mechanical fastening of the module.
• For higher current loads, use appropriate wires and firmly tightened terminals.

Safety notice

• Incorrect wiring may cause damage to the controller, motor, or power supply.
• During operation, there is a risk of heating of power components and terminals.
• A short circuit at the output or power terminals can lead to damage to the device and wires.
• Installation and connection must be carried out with the power supply disconnected.
• The product is not intended for direct connection to the AC mains.
• When integrated into a device, it is necessary to ensure protection against touching live parts and against mechanical damage.
