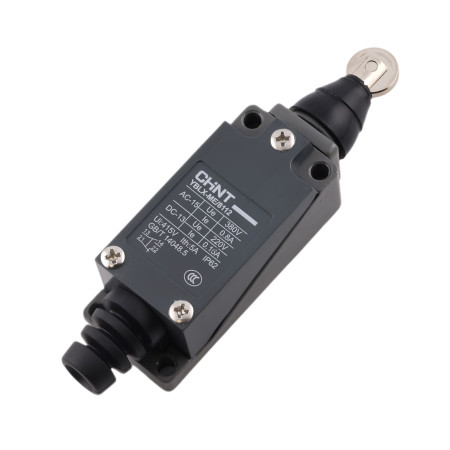

Limit switch YBLX-ME/8112, straight roller

The CHND YBLX-ME/8112 limit switch is an electromechanical position switch with a straight roller designed for end position sensing and positional motion control in industrial applications. It is used for reliable end-of-travel signaling, motion blocking, and sequence control of machine mechanisms.

Technical specifications

• Model: YBLX-ME/8112
• Control head type: straight roller
• Contacts: 1NO + 1NC
• Maximum operating force (OF): 20 N
• Maximum working stroke (PT): 5 mm
• Minimum stroke difference (OT): 2 mm
• Rated insulation voltage (Ui): 380 V
• Utilization category AC-15: Ue 380 V, Ie 0.8 A
• Utilization category DC-13: Ue 220 V, Ie 0.2 A
• Protection level: IP62
• Body dimensions: height 120 mm (max), width 28.5 mm (max), depth 28 mm (max)
• Mounting spacing: 56 mm
• Mounting holes: 2x Ø4.1 mm
• Threads for mounting/components: 2x M5
• Pulley diameter: Ø13 mm

Functions and features

• Mechanical control with a straight roller for sensing the movement of cams, stops and sliding parts
• Combination of normally closed and normally open contact (1NC + 1NO) for control and signaling
• Compact metal design suitable for industrial environments
• Suitable for control circuits in categories AC-15 and DC-13

Ideal for

• End positions of linear and rotary mechanisms
• Industrial machines, conveyors, packaging and assembly equipment
• Position signaling in automation and machine control
• Applications where mechanical travel sensing is required

Package contents

• Limit switch CHINT YBLX-ME/8112

Why choose this product?

• Standardized limit switch design for industrial use
• 1NO + 1NC contacts allow flexible wiring in control circuits
• Mechanical design with straight roller is suitable for repeated position sensing
• Clearly defined electrical usage categories AC-15 and DC-13

Installation and operating instructions

• Mount the switch on a solid surface and ensure that the control element is loaded in the prescribed direction of movement of the mechanism.
• When connecting, verify the function of the 1NO and 1NC contacts and select the correct terminals according to the required control logic.
• Provide suitable mechanical stops to prevent excessive stress on the controller.

Safety notice

• Installation and connection should only be carried out with the power supply disconnected and by a qualified person.
• In circuits with hazardous voltages, improper installation can cause electric shock or damage to the equipment.
• Follow the application requirements for fuses and protection against short circuits and overloads.
