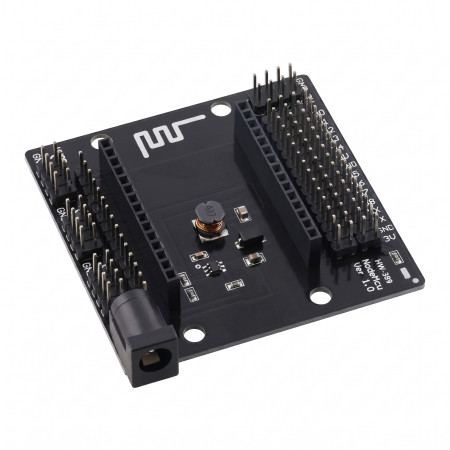

Power base for NodeMCU ESP8266 with DC input

The power base for NodeMCU ESP8266 development boards serves as a backplane for mounting the module and bringing its pins out to accessible connector rows. The design with a DC power input facilitates powering and testing in laboratory, development and prototype applications. The board is designed to work with NodeMCU modules in a format corresponding to the layout of the sockets used on the base.

Technical specifications

• Product type: module base/backplane for NodeMCU ESP8266
• Power supply: DC power connector
• Supported power supply according to product documentation: 6-24 V DC
• Interface for mounting the module: a pair of sockets for inserting the NodeMCU development board
• Signals output on pin strips: GND, 3V, D0, D1, D2, D3, D4, D5, D6, D7, D8, RX, TX
• Additional power outlets on the side: USB, 5V, 4V, GND
• Marking on the board: NodeMcu Base Ver 2.0
• Board dimensions: 60 × 59.8 mm
• Height: 16mm
• Mounting holes: 4 pcs

Functions and features

• It allows mechanical mounting of the NodeMCU module into sockets without directly soldering the module to the motherboard.
• It outputs the module's power and data pins to multi-pin headers for easy connection of peripherals and measurement equipment.
• Includes a DC power input for external power supply to the base.
• The board has an indicator LED that signals power.
• The design with mounting holes allows for a firm attachment to the device or to a work surface.
• The pin description is printed directly on the PCB for easier orientation when wiring.

Ideal for

• development and testing of projects with NodeMCU ESP8266
• prototyping IoT devices
• laboratory and teaching use
• connecting sensors, communication modules and other peripherals to the NodeMCU development board

Package contents

• 1x NodeMCU Base with DC input

Why choose this product?

• It provides a clear pin layout of the NodeMCU development board into accessible connector rows.
• It allows power supply from an external DC source without the need for separate power connections outside the base.
• Mechanically attaching the module to the sockets simplifies board replacement during development and testing.
• The compact design is suitable for workbenches, development fixtures and integration into prototypes.

Installation and operating instructions

• Only install the NodeMCU module when the power is disconnected.
• Before connecting an external power source, verify the polarity and input voltage range specified for this base.
• When inserting the module, ensure the correct orientation of the pins relative to the sockets and the description on the board.
• Connect the connected peripherals according to the markings of the individual pins on the PCB.

Safety notice

• Incorrect power connection can cause damage to the base, the installed module and connected devices.
• Do not short-circuit the power pins or data pins.
• Operate the board in a non-conductive and dry environment.
• When developing and integrating into a device, it is necessary to observe the correct electrical connection and load of individual pins according to the NodeMCU module used.
• The product is intended for electronic development and prototyping; installation into the final device should be performed by a person with electronics knowledge.
