Metal switch with red backlight, interior lighting, silver, diameter 22mm, IP65, 12V

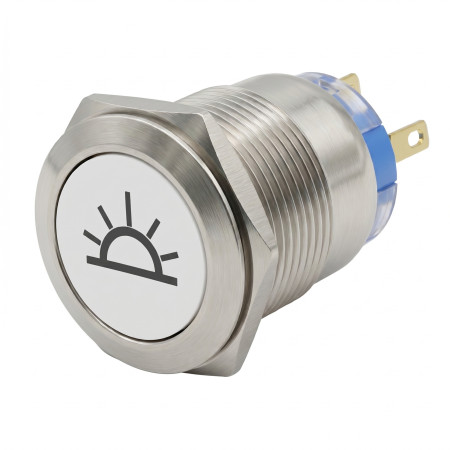

The metal push-button switch AM2416 with latching is designed for controlling electrical circuits and for installations where a visible red LED backlight is required. The design with a metal body and IP65 protection allows use in control panels, electrical installation assemblies, and interior lighting while observing the specified electrical parameters.

Technical specifications

• Product type: metal push-button switch with LED backlight
• Switching type: latching
• Backlight color: red
• Maximum voltage for LED backlight: 12 V
• Maximum switched load: 250 V / 5 A
• Contact type: NO, NC
• Mounting diameter: 19 mm
• Front part diameter: 22 mm
• Protection: IP65
• Design: silver metal body

Functions and features

• The latching mechanism allows maintaining the closed or open state after pressing.
• NO and NC contacts allow connection for switching and breaking functions according to the circuit design.
• The red LED backlight serves for visual signaling or orientation of the control element.
• The metal design is suitable for mounting in control panels and front plates.
• IP65 protection provides protection against dust and against water jets when properly mounted.

Ideal for

• Control panels of electrical devices.
• Switching and signaling in interior lighting.
• Control and auxiliary circuits with a requirement for a latching switch.
• Panel installations where a metal button with backlight is required.

Package contents

• 1x Metal switch with red backlight

Why choose this product

• The product combines latching switching, LED backlight, and NO and NC contacts in one panel element.
• The specified parameters allow use in electrical circuits with a clearly defined limit of the switched load.
• The mounting diameter of 19 mm and the front diameter of 22 mm facilitate integration into panel applications corresponding to these dimensions.
• IP65 protection is suitable for environments where increased protection of the front part of the switch is required.

Installation and operation instructions

• Before mounting, verify the compliance of the NO and NC contact connection with the required function of the controlled circuit.
• Connect the LED backlight only to a voltage not exceeding 12 V.
• The switched load must not exceed the value of 250 V / 5 A.
• To maintain IP65 protection, the switch must be fitted into a suitably prepared panel and properly tightened.

Safety warnings

• When used in AC networks with a voltage up to 250 V, there is a risk of electric shock.
• Mounting into circuits with mains voltage may only be performed by a person with appropriate electrical qualifications.
• Before installation, connection, or maintenance, the circuit must be disconnected from the power supply.
• Incorrect connection of contacts or LED backlight can cause a short circuit, overheating, or damage to the switch.
• Do not use the product outside the specified electrical limits.
