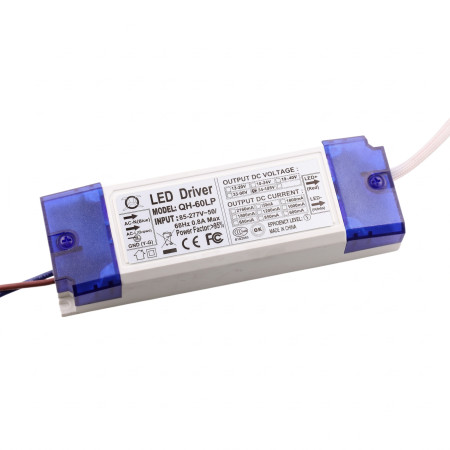

Power Supply for 18-30x3W LED, 600mA, 54–105 V DC

This constant current LED driver is designed to power high-power LED modules in an 18–30x3W configuration. It serves as an external power supply with an AC mains input and a DC output with a limited current of 600 mA. It is suitable for applications requiring a stable constant current power supply for an LED load within the corresponding output voltage range.

Technical Specifications

• Output principle: Constant current
• Designed for: 18–30x3W LED
• Input voltage: AC 85–277 V
• Input frequency: 50/60 Hz
• Output voltage: 54–105 V DC
• Output current: 600 mA
• Dimensions: 140 × 45 × 28 mm
• Design: Plastic housing
• Certification: CE, RoHS

Features and Properties

• Powers LED loads with a constant current of 600 mA.
• Wide input mains voltage range for fixed installations.
• External design with lead wires for AC input and DC output.
• Compact, elongated plastic body suitable for integration into luminaires and lighting assemblies.
• Designed for LED modules or assemblies with electrical parameters matching the 54–105 V DC output at 600 mA.

Ideal For

• Powering series-connected high-power LEDs.
• LED luminaires, floodlights, and other lighting applications with constant current control.
• Service replacement or construction of LED power supply units requiring a 600 mA current and the corresponding output voltage.

Package Contents

• 1x LED driver 600 mA 54–105 V DC

Why Choose This Product

• Parameters perfectly match the power requirements of 18–30x3W LED assemblies.
• Constant current design is ideal for high-power LEDs that require current control.
• Wide input range of AC 85–277 V allows use in various mains conditions.
• Specifically listed output voltage, current, and dimensions ensure easy compatibility checks during design or replacement.

Installation and Operating Instructions

• Before connecting, verify that the LED load is designed for a constant current of 600 mA and its operating voltage falls within the 54–105 V DC range.
• Ensure correct connection of the AC input and DC output polarity.
• Perform the installation with the power disconnected.
• Install the driver in a way that ensures adequate ventilation and avoids mechanical stress or moisture, unless the device is specifically rated for such environments.
• Professional installation is recommended for connecting to the mains voltage.

Safety Warnings

• The device operates with a mains input voltage of AC 85–277 V and an output of up to 105 V DC. Improper handling poses a risk of electric shock.
• Do not connect an LED load with an incorrect current or voltage rating.
• Incorrect polarity connection or a short circuit on the output can damage the driver or the LED module.
• Do not install in environments for which the product is not intended.
• Any modification to the structure or connecting while under voltage is strictly prohibited.
