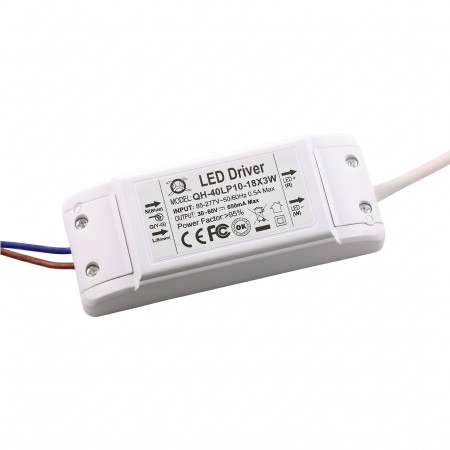

Power Supply for 10-18 pcs 3W LEDs, 30-60V, 600mA

The constant current LED power supply is designed to power setups of 10–18x 3W LEDs. It serves as an external LED driver for lighting applications where a stabilized current of 600 mA is required. Its design is suitable for integration into luminaires and other lighting assemblies with a matching output voltage range.

Technical Specifications

• Product type: Constant current LED driver
• Designed for: 10–18x 3W LEDs
• Input voltage: 85–277 V AC
• Input frequency: 50/60 Hz
• Output voltage: 30–60 V DC
• Output current: 600 mA ±5%
• Dimensions: 115 x 45 x 28 mm
• Housing material: Plastic
• Design type: External driver
• Product markings: CE, FCC

Features and Functions

• Constant current output for powering high-power LEDs.
• Wide AC input voltage range for use in various power systems.
• Separate input wires for AC power and output wires for connecting the LED load.
• Plastic housing design with screwed end caps.
• Designed for use with LED modules or assemblies that match the output current and voltage range of the driver.

Ideal For

• Powering high-power LEDs and COB LED modules.
• Downlights and recessed lighting.
• LED panels and other internal lighting assemblies with constant current power.
• Replacement or service use in compatible LED luminaires.

Package Contents

• 1x LED driver 600 mA for 10–18x 3W LEDs

Why Choose This Product

• Clearly defined 600 mA output current for compatible LED loads.
• Output voltage range of 30–60 V for multi-cell LED assemblies.
• External design makes it easy to integrate into a luminaire or replace the original driver.
• Technical specifications are clearly marked directly on the device label.

Installation and Operating Instructions

• Before connecting, verify that the required current of the LED module matches the 600 mA output and that the operating voltage of the load is within the 30–60 V DC range.
• Connect the input wires to the AC 85–277 V mains power supply according to the wire markings.
• Connect the output wires to the LED load with the correct polarity.
• Perform the installation to ensure mechanical fastening and adequate heat dissipation within the luminaire.
• Do not connect the driver to a voltage source designed for constant voltage LEDs.

Safety Warnings

• The device operates with AC 85–277 V mains voltage. There is a risk of electric shock during installation.
• Perform installation and wiring only when the power supply is disconnected.
• Incorrect output wiring or connection of an incompatible LED load may result in damage to the driver or the LED module.
• The product requires professional installation in accordance with electrical equipment regulations.
• Prevent short circuits on the output and do not operate the device with damaged wire insulation or housing.
