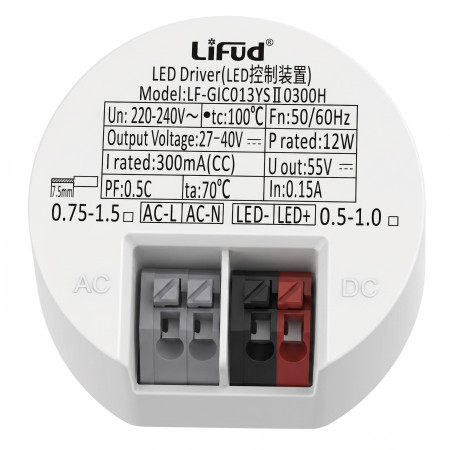

LiFud Power Supply 12 W, 180-265VAC/24-42VDC, 300 mA

The round LED driver is a power supply for the current feeding of LED luminaires with an output current of 300 mA. It is used to convert AC mains voltage to a DC output for LED loads in the range of DC 24-42 V. It is designed for fixed installation in luminaires and lighting assemblies where a separate power supply module for LEDs is required.

Technical Specifications

• Product type: LED driver
• Power: 12 W
• Input voltage: AC 180-265 V
• Input frequency: 50/60 Hz
• Output voltage: DC 24-42 V
• Output current: 300 mA
• Output current tolerance: ±5 %
• Power factor: PF ≥ 0.9
• Ambient operating temperature Ta: 45 °C
• Case temperature Tc: 85 °C
• Body dimensions: diameter 42 mm, height 22 mm
• Design: round casing with connecting wires
• Input wires: L, N
• Output wires: LED+, LED-

Features and Properties

• Converts AC mains voltage to DC current output for LEDs.
• The output is marked with LED+ and LED- polarity for correct connection of the LED load.
• The round casing allows installation in space-restricted parts of the luminaire.
• Connection is handled by exposed wires without an integrated terminal block.
• The casing features mounting brackets for mechanical fastening.

Ideal For

• LED panel lights with corresponding electrical parameters.
• LED ceiling lights with an external current driver.
• LED downlights powered by a 300 mA current.
• Replacing a damaged LED driver with an identical output current and corresponding output voltage range.

Package Contents

• 1× LED driver

Why Choose This Product

• Suitable for LED loads with a current of 300 mA and an operating voltage of DC 24-42 V.
• Features clearly marked input and output wires, including output polarity.
• The compact round design is suitable for installation in LED luminaires.
• Parameters are listed directly on the driver body, making it easy to check during installation or replacement.

Installation and Operating Instructions

• Before installation, verify the compatibility of the output current and output voltage range with the connected LED load.
• Connect the input wires only to the appropriate AC mains voltage.
• Connect the output wires to the LED load with the correct LED+ and LED- polarity.
• Secure the driver so that the wires are not subjected to mechanical stress.
• Installation must be performed by a person with appropriate electrical qualifications.

Safety Warnings

• The device operates with mains voltage; incorrect handling may result in electric shock.
• Perform installation, dismantling, and wiring only when the power supply is disconnected.
• Do not connect an LED load with an incompatible current or voltage range.
• Incorrect connection of the output polarity will cause malfunction or damage to the LED load.
• Do not use the driver if there is visible damage to the casing, wires, or insulation.
• Ensure sufficient space for heat dissipation and do not exceed the specified Ta and Tc temperature values.
