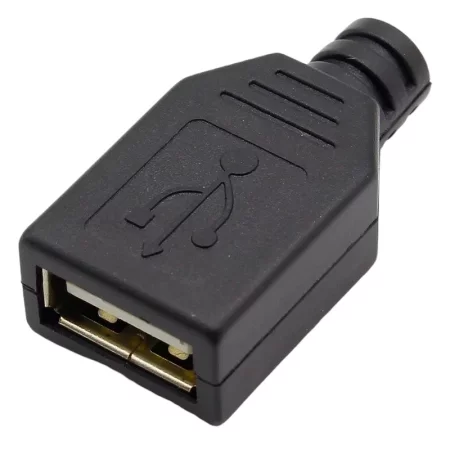

USB connector type A wired, female

The USB type A female cable connector is designed for mounting on a cable by soldering. It is suitable for the production, repair and modification of power or data USB lines, where a compact and mechanically protected termination is required. The design consists of a 4-pin connector and a black plastic cover, which after assembly creates a compact unit for common low-voltage applications.

Technical specifications

• Connector type: USB type A
• Design: female
• Number of pins: 4
• Assembly: by soldering to wires
• Composition: 4-pin USB connector + black plastic cover
• Rated voltage: 5V
• Rated current: 2 A
• Working frequency: low frequency use
• Cable entry diameter: 3.2 mm
• Housing color: black

Functions and features

• Designed for assembling a female type A USB cable connector
• 4-pin interface corresponds to standard USB type A connection
• Plastic cover protects solder joints and improves mechanical resistance of terminations
• Suitable for power and data connections within USB 5 V applications
• Compact design allows use in both production and service of cabling
• Assembly consists of soldering the wires and snapping the cover into place.

Ideal for

• Production and repair of USB cables
• Servicing electronic devices with USB power or communication
• Prototyping and development workplaces
• Custom cable reductions and individual cable assemblies
• Low-voltage 5V applications with USB Type A connector

Package contents

• 1x USB connector type A, female, 4pin

Why choose this product?

• Standard USB Type A female for wide compatibility
• Soldering design allows for a solid and reliable electrical connection
• Simple design suitable for assembly and repair
• Plastic cover helps protect the joint from mechanical stress
• Suitable solution for technical applications requiring custom cable assembly

Installation and operating instructions

• Before assembly, check the correct assignment of individual wires to the connector contacts.
• Solder the wires taking into account the power polarity and the correct connection of the data pins.
• After soldering is complete, fit and close the plastic cover so that the connections are mechanically protected.
• For proper operation, we recommend using a cable of the appropriate diameter for the 3.2 mm input.
• The product is designed for low-voltage USB circuits with a voltage of 5 V.
