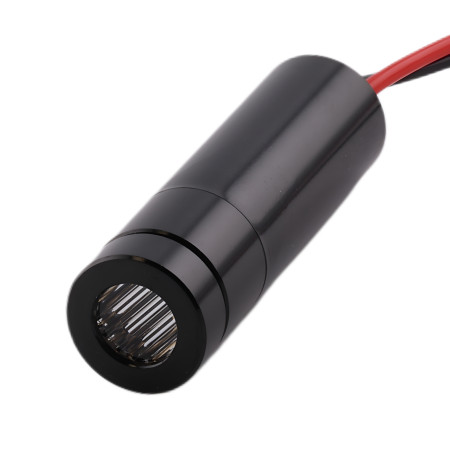

Laser module green, 15mW, 520nm, line

27.59 €

27.59 € excl. VAT

27.593554 Tax excluded

In stock

Quantity:

Download PDF

⚠️ Safety warning: This laser module is an electronic component intended exclusively for professional, laboratory, and industrial applications. It is not intended for consumer or household use and must not be used as a laser pointer.

During operation, it is necessary to comply with the safety requirements of the EN 60825-1 standard and to use appropriate protective equipment. The manufacturer of the final device is responsible for the resulting laser classification according to EN 60825-1.

Description

The laser module with a green wavelength of 520 nm is designed for creating line projections in industrial, laboratory and development applications. It is suitable for integration into measuring, positioning and testing assemblies where continuous laser radiation, compact design and DC voltage supply are required.

Technical specifications

Product type: line laser module
Wavelength: 520 nm
Laser color: green
Dimensions: 12 × 40 mm
Working mode: continuous
Output power: ±15mW
Supply voltage: DC 2.8-5V
Laser diode working current: less than 200 mA
Lifespan: more than 10000 hours
Working temperature: -10 to 60 °C
Storage temperature: 40 to 85 °C

Functions and features

Line projection for optical marking of axis, plane or direction
Continuous operation suitable for permanent installation in equipment
Compact cylindrical design for integration into mechanical assemblies
Low DC voltage power supply
Designed as an industrial electronic component for technical applications

Ideal for

Industrial testing and control products
Laboratory workplace
DIY construction and development equipment
Positioning and aiming applications
Optical marking in measuring and assembly systems

Package contents

1 pc of 520 nm laser module

Why choose this product?

Specific electrical and operational parameters are available for wiring design
Compact dimensions facilitate mechanical integration
Continuous operation mode is suitable for stable line projection
Power supply in the range of 2.8 to 5 V DC allows use in low-voltage systems
Suitable for technical, laboratory and development use

Installation and operating instructions

Observe the specified supply voltage of DC 2.8–5 V.
Do not exceed the current load specified for the laser diode.
Install the module in a fixed position with regard to heat dissipation and stability of the projection direction.
When installing the module in a device, ensure correct polarity and mechanical protection.

Safety notice

Laser radiation can damage your eyesight. Do not point the beam into your eyes or at reflective surfaces.
The product is an electronic component intended for professional integration into equipment.
Incorrect wiring may lead to module damage or overheating.
During installation and operation, ensure protection against short circuits and reverse polarity.
