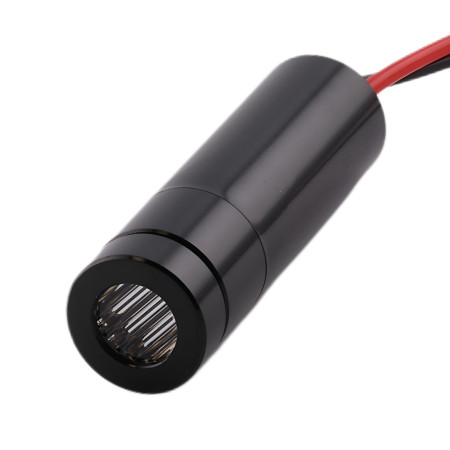

Laser module red, 1mW, 650nm, line

The compact 1mW industrial laser module with a wavelength of 650nm is ideal for precise aiming, marking or alignment in applications where a fine red laser beam is required. The module offers adjustable focus and a line or cross pattern, making it suitable for assembly and inspection systems, CNC machines or laboratory measurements.

Technical specifications

• Dimensions: Ø12×45 mm (built-in PCB board)
• Housing material: anodized aluminum (blackening)
• Lens: PMMA
• Wavelength: 650 nm (red light)
• Output power: 1 mW (typically 0.7–0.9 mW)
• Projection pattern: 110° line
• Operating mode: APC/ACC (automatic power control)
• Supply voltage: 3-5 V DC
• Connector: 1m cable with DC connector 5.5×2.1 mm
• Operating temperature: −10 °C to +50 °C
• Storage temperature: −40 °C to +85 °C
• Mean time between failures (MTBF): > 8,000 hours

Functions and features

• Adjustable focus allows line size to be adjusted according to distance and surface.
• The integrated APC/ACC circuit ensures stable performance even when power supply fluctuates.
• The aluminum body guarantees effective heat dissipation and long service life.
• Can be mounted using a standard or 3-axis mount (optional accessory).

Ideal for

• Industrial and laboratory measurements
• Machine and CNC applications
• Alignment and positioning systems
• Laser pointers and reference lines

Package contents

• Laser module 650nm, 1mW, Ø12×45mm

Why choose this product?

• Stable performance and long service life thanks to high-quality construction
• Safe, low-power Class II laser suitable for precision applications
• Compact dimensions and easy integration into devices
• Adjustable line or cross pattern for versatile use
