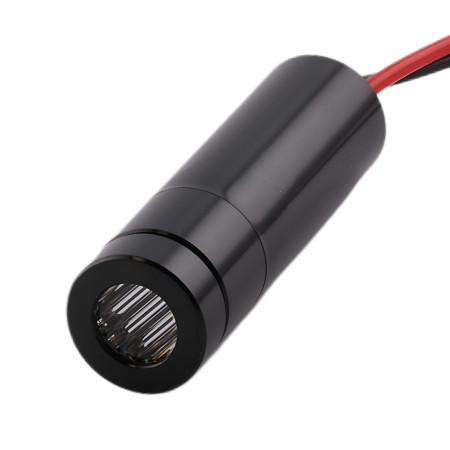

Laser module green, 15mW, 520nm, point (dot)

The laser module with a green wavelength of 520 nm is designed for integration into devices, laboratory kits and DIY projects. It operates in continuous mode and produces a point output. Thanks to its compact dimensions of 12 × 40 mm, it is suitable for integration into smaller structures where a stable laser point is required for aiming, testing or technical experiments.

Technical specifications

• Product type: laser module
• Laser color: green
• Wavelength: 520 nm
• Lighting mode: continuous
• Output mode: point
• Dimensions: 12 × 40 mm
• Supply voltage: DC 2.8 to 5 V
• Laser diode working current: less than 200 mA
• Power control: constant current
• Output power: ±15mW
• Lifespan: more than 10000 hours
• Working temperature: -10 to 60 °C
• Storage temperature: -40 to 85 °C
• Spot size: less than 15 mm at 5 m distance

Functions and features

• Green laser module for creating a point light output.
• Design intended as an electronic component for installation in equipment.
• Continuous operation suitable for measurement, surveying and laboratory use.
• The compact cylindrical design facilitates mechanical integration into holders and fixtures.
• Designed for industrial testing, laboratory applications and technical DIY projects.

Ideal for

• laboratory and experimental sets
• optical and electronic projects
• industrial testing preparations
• aiming and indication applications
• DIY construction with low DC voltage power supply

Package contents

• 1× laser module 520 nm, point

Why choose this product?

• The stated wavelength of 520 nm corresponds to a green laser.
• Power supply in the DC 2.8 to 5 V range allows use in low-voltage electronic systems.
• Continuous mode is suitable for permanent technical use without pulse control.
• The compact dimensions of 12 × 40 mm support easy integration into devices.
• The module is intended directly as an electronic component for technical and laboratory applications.

Installation and operating instructions

• Connect only to DC voltage in the range of 2.8 to 5 V.
• When installing, ensure correct polarity and a stable electrical connection.
• Install the module so that it is mechanically firmly attached and its connections are not stressed.
• During operation, observe the specified current range and operating temperature.
• The product is intended for installation in equipment and technical assemblies.

Safety notice

• Laser radiation can damage your eyesight. Do not point the beam into your eyes or at reflective surfaces.
• The product is not intended for direct observation of the beam with optical instruments.
• Incorrect connection may damage the module or cause overheating.
• Perform installation into the device with the power disconnected.
• The product is an electronic component intended for professional use or integration into technical projects.
