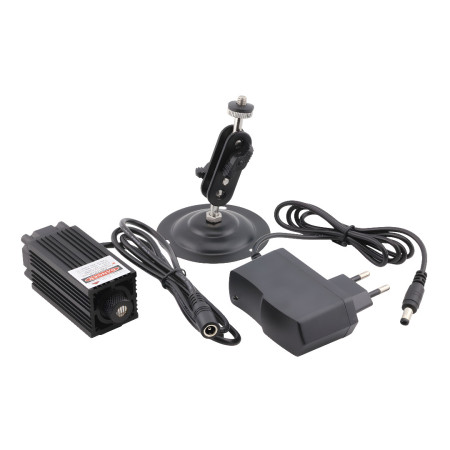

Laser module IR 808nm, 500mW, dot (set)
Red laser module (808nm) power 500mW. Set of laser module with holder and power supply.
⚠️ Safety warning: This laser module is an electronic component intended exclusively for professional, laboratory, and industrial applications. It is not intended for consumer or household use and must not be used as a laser pointer.
During operation, it is necessary to comply with the safety requirements of the EN 60825-1 standard and to use appropriate protective equipment. The manufacturer of the final device is responsible for the resulting laser classification according to EN 60825-1.
Lens: dot
Wavelength: 808nm (IR)
Working voltage of the laser module: 12-24V DC
Source input voltage: 220-250V AC
Degree of protection: IP20
Safety class: III B
Working temperature: -20 - 60°C
Laser module size including heatsink: 40x40x122mm
Cable length: 100cm
Connector: 5.5x2.1mm
Range max. 10m
Package contents: laser module, adjustable holder, 12V DC power supply
Safety Warnings:
During operation, avoid any impact of the beam into human or animal eyes. The laser is not safe for human health.
- Light color
- Infrared
- Wavelength
- 808 nm
- Voltage
- 12-24 V DC
- Performance
- 500 mW
- Cable length
- 100 cm
- Waterproof grade
- IP20
- Safety class (IEC 60825-1)
- 4
EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
