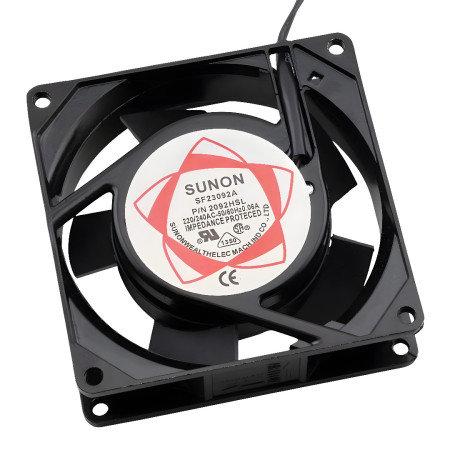

Fan 92x92x25mm, 220-240V AC, IP20, SF23092A

The SF23092A axial fan (P/N N2092HSL) is designed for forced cooling of electronic devices and switchboards powered from the mains. Thanks to the 220–240V AC power supply, it is suitable for applications where auxiliary DC voltage is not available and where stable air flow is required in a compact format of 92×92×25 mm.

Technical specifications

• Model: SF23092A (P/N N2092HSL)
• Type: axial AC fan
• Supply voltage: AC 220-240V
• Working voltage: 220V (range 185-245V)
• Mains frequency: 50/60 Hz
• Dimensions: 92 × 92 × 25 mm
• Power consumption: 13/11 W (50/60 Hz)
• Speed: 2250/2750 rpm (50/60 Hz)
• Airflow: 29/36 CFM
• Noise level: 32/37 dB(A)
• Weight: 280g
• Bearings: double balls
• Frame: aluminum alloy (cast), black painted, corrosion and moisture resistance
• Impeller: injection-molded, PBT + 30% glass fiber, VO (self-extinguishing version)
• Winding insulation: enamelled wire, temperature class B (120 °C)
• Insulation resistance: > 500 MΩ
• Electrical strength test: 1500 V / 1 min, leakage current 0.5 mA
• Ambient temperature (according to documents): -50 °C

Functions and features

• Power supply directly from AC 220-240 V for standard industrial installations
• Double ball bearings for long-term operation and higher mechanical resistance
• Compact size of 92×92×25 mm for installation in control cabinets and devices with limited space
• Aluminum alloy frame with surface treatment for increased resistance to moisture and corrosion
• Blade material PBT with glass fiber and self-extinguishing classification (VO according to documents)

Ideal for

• Cooling of switchboards, power supplies and industrial control systems
• Ventilation of electronic cabinets and mains-powered instrument boxes
• Cooling of power elements, converters, UPS and laboratory equipment
• General forced air flow in technical applications

Package contents

• 1× axial fan SF23092A (P/N N2092HSL)

Why choose this product?

• Verifiable parameters from the documents: dimensions 92×92×25 mm, AC 220–240 V, 50/60 Hz, flow rate and noise level
• AC design eliminates the need for a separate DC power supply
• The construction with an aluminum frame and ball bearings is suitable for continuous technical operation
• The electrical strength and insulation parameters specified by the manufacturer support use in network applications

Installation and operating instructions

• During installation, observe the direction of air flow according to the orientation of the fan in the device.
• Ensure sufficient conductor cross-section and mechanical relief of the supply to avoid stress on the terminals/terminals.
• For stable operation, respect the specified supply voltage range and mains frequency of 50/60 Hz.
• In dusty environments, we recommend using a filter grid and regular maintenance to maintain flow.

Safety notice

• The product is powered by AC 220–240 V. Installation and service should only be carried out with the power supply disconnected and in accordance with applicable standards.
• Do not touch rotating parts; use a suitable protective grille during assembly if the fan is accessible.
• Do not use the fan if the power cord, frame or impeller is damaged.
