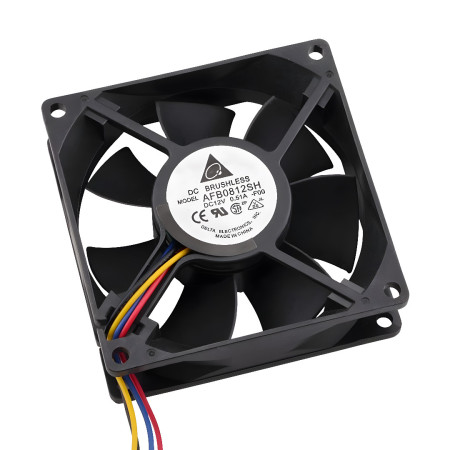

Fan 80x80x25mm, 12V DC, IP20, DELTA AFB0812SH

Powerful axial fan from Delta Electronics designed for effective cooling of electronic devices, power supplies, server applications and industrial systems. Thanks to its robust construction and ball bearings, it is suitable for continuous operation even under higher thermal loads.

Technical specifications

• Supply voltage: 12 V DC
• Rated current: 0.51 A
• Power consumption: 6.1 W
• Airflow: 46.62 CFM (1,320 m³/min)
• Static pressure: 0.267 inH2O (6.78 mmH2O)
• Fan type: axial, DC brushless
• Dimensions: 80 × 80 × 25 mm
• Bearing type: ball bearing
• Manufacturer's designation: AFB0812SH
• Weight: 95g
• Degree of protection: IP20

Functions and features

• High cooling capacity suitable for demanding applications
• Ball bearings for long life
• Stable operation under continuous load
• Standard size 80 mm for easy installation
• Proven quality from Delta Electronics

Ideal for

• Power supply cooling
• Industrial electronics and switchboards
• Server and network devices
• Power and control modules

Package contents

• Fan DELTA AFB0812SH

Why choose this product?

• High performance in compact dimensions
• Long service life thanks to ball bearings
• Trusted manufacturer used in industry and servers
• Suitable for professional and continuous operation

Installation and operating instructions

• Make sure the fan is properly connected to the power supply using the 4-pin PWM connector.
• To achieve optimal performance, we recommend regular maintenance and cleaning.

Safety notice

• The fan is designed for use with 12V DC. Do not connect to a higher voltage to avoid damage to the device.
