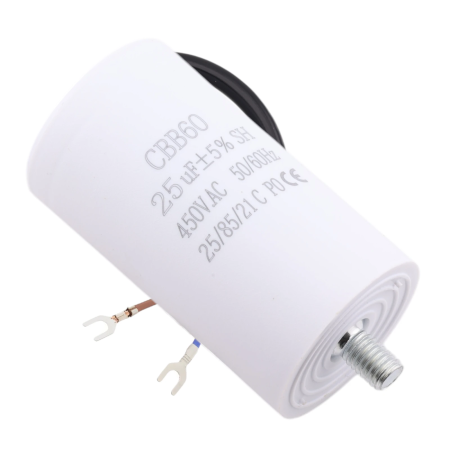

Run capacitor CBB60, 450V, 25uF

The CBB60 motor run capacitor with a capacity of 25 µF is designed for the operation of single-phase asynchronous motors in AC applications. It is used to create a phase shift of the auxiliary winding, thereby contributing to stable motor operation in operation.

Technical specifications

• Type: motor run capacitor, CBB60 series
• Capacitance: 25 µF
• Rated voltage: 450 VAC
• Capacity tolerance: ±5%
• Operating frequency: 50/60 Hz
• Dielectric: polyester film
• Operating temperature: -25°C to +85°C
• Terminal design: wires
• Mounting: through-hole / cable connection
• Protection class: P0

Functions and features

• Designed for continuous operation in motor applications (run capacitor)
• Stable parameters within the range of normal operating temperatures
• Suitable for applications with a supply frequency of 50/60 Hz
• Film dielectric construction for motor applications

Ideal for

• Air conditioning units and fans
• Pumps
• Compressors (e.g. refrigeration technology)
• Auxiliary and running circuits of single-phase motors

Package contents

• 1× CBB60 capacitor 25 µF

Why choose this product?

• Standard CBB60 series for motor running applications
• Rated voltage 450 VAC for use in mains motor circuits
• Defined capacitance tolerance of ±5% for predictable circuit behavior

Installation and operating instructions

• Install in the motor circuit according to the device wiring (run capacitor for auxiliary winding).
• Ensure mechanical fastening and protection of the terminals against vibration and tension.
• It is recommended to check the capacity and condition of the capacitor during service interventions on the device.

Safety notice

• Working with the device requires professional qualifications; the capacitor is designed for circuits with a mains voltage of 220–250 VAC.
• Always disconnect power before handling and verify that the capacitor is safely discharged.
• Do not exceed rated voltage and do not use in applications for which the capacitor is not intended.
