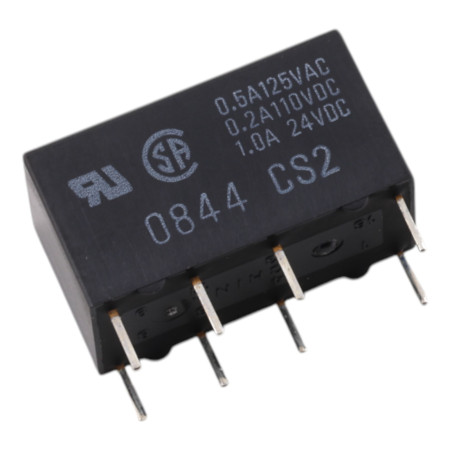

Relay G5V-2-H1, 12V DC/125V AC 2A

Omron G5V-2-H1 is a miniature signal relay in the High-sensitivity version, designed for switching low to medium power in control and measurement circuits. Thanks to the 12 V DC coil and DPDT (2c) contacts, it is suitable for applications where reliable galvanic isolation and switching of two independent circuits is required.

Technical specifications

• Model: G5V-2-H1
• Contact type: DPDT (2c)
• Coil voltage rating: 12 V DC
• Nominal coil current: 12.5 mA
• Coil resistance: 960 Ω
• Coil consumption: approximately 150 mW
• Rated contact load (resistive): 0.5 A at 125 V AC; 1 A at 24 V DC
• Maximum switching voltage: 125 V AC, 125 V DC
• Maximum switching current: 1 A
• Contact material: Ag + Au alloy
• Contact resistance (High-sensitivity): 100 mΩ max.
• Switching time: 7 ms max.
• Opening time: 3 ms max.
• Insulation resistance: 1000 MΩ min. (at 500 V DC)
• Dielectric strength between coil and contacts: 1000 V AC, 50/60 Hz for 1 min
• Dielectric strength between contacts of the same polarity (High-sensitivity): 500 V AC, 50/60 Hz for 1 min
• Dielectric strength between contacts of different polarity: 1000 V AC, 50/60 Hz for 1 min
• Impulse withstand voltage: 1500 V (10 x 160 µs)
• Ambient operating temperature: -25 °C to +70 °C (without icing and condensation)
• Weight: approximately 5 g

Functions and features

• High-sensitivity version for applications with limited coil excitation power
• Double changeover contacts (2c) for simultaneous switching or switching of two circuits
• Bifurcated crossbar arrangement for stable contact at low signals
• Contacts with Ag + Au alloy for switching signals and low currents
• Galvanic isolation between coil and contacts

Ideal for

• Control and automation modules
• Measurement technology and signal paths
• Switching outputs in low-voltage DC circuits
• Switching resistive loads within the specified limits

Package contents

• 1 pc Omron relay G5V-2-H1, coil 12 V DC

Why choose this product?

• Proven signal relay design with DPDT (2c) contacts
• Parameters suitable for precise and low-energy control applications
• Defined switching limits for both AC and DC loads including a maximum switching voltage of 125 V

Installation and operating instructions

• When designing, consider the type of load (resistive/inductive) and use appropriate protective elements (e.g. RC element, diode, varistor) to limit overvoltage
• Observe the nominal coil voltage of 12 V DC and ensure a stable power supply including correct polarity if relevant to your wiring
• For long-term reliability, do not exceed the maximum switching voltage and current and verify temperature rise under real-world conditions.

Safety notice

• The relay can switch voltages up to 125 V AC/DC; working with dangerous voltages requires professional competence and compliance with applicable standards
• Before handling, disconnect the device from the power supply and verify that there is no voltage.
• Ensure sufficient insulation distances and shielding according to the specific application
