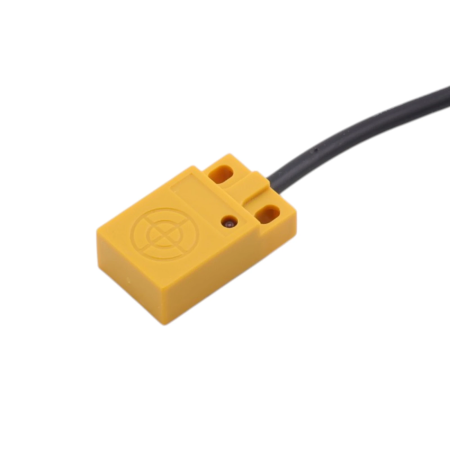

Inductive sensor TL-W5MF2

The TL-W5MF2 inductive sensor is used for non-contact detection of metal objects in automation and control applications. It is intended for installation in machines, fixtures and industrial equipment where switching based on the proximity of a metal object without mechanical contact is required.

Technical specifications

• Model: TL-W5MF2
• Product type: inductive proximity sensor
• Sensing distance: 5 mm
• Sensing distance tolerance: ±10%
• Power supply: DC 10-30V
• Output type: 3-wire PNP NC
• Maximum load current: 300 mA
• Body dimensions: 30.5 × 18 × 10 mm
• Mounting holes: 2 holes, diameter 3.5 mm
• Mounting hole spacing in the longitudinal direction: 12 mm

Functions and features

• Non-contact detection of metal objects based on the principle of inductive sensing.
• Rectangular housing with mounting holes for secure mounting.
• 3-wire connection for integration into DC control circuits.
• PNP NC output logic for applications requiring a normally closed state.
• Signaling LED on the front of the sensor.
• Cable outlet from the sensor body.

Ideal for

• Detection of the position of metal parts in machines and automation lines.
• End-to-end sensing of mechanisms and moving elements.
• Counting metal parts in manufacturing and sorting applications.
• Industrial control systems with DC power supply and PNP inputs.

Package contents

• 1x TL-W5MF2 sensor with cable outlet

Why choose this product?

• There is a specifically designated model TL-W5MF2 with a clearly distinguished PNP NC output type.
• Known mechanical dimensions facilitate mounting design and replacement with the same sensor format.
• The induction principle is suitable for detecting metal objects without mechanical wear of the contacts.
• The power supply in the range of DC 10–30 V corresponds to common industrial control circuits.

Installation and operating instructions

• Install the sensor so that only the desired metal objects are in the detection zone.
• When installing, ensure mechanical fastening through both mounting holes.
• Before wiring, verify the correct control system input type and corresponding PNP NC logic.
• Connect the wires according to the product diagram and with the power supply disconnected.

Safety notice

• Incorrect connection of the power supply or load may lead to damage to the sensor or downstream electronics.
• Carry out assembly and electrical connections with the power switched off.
• The product is an electrical component intended for professional installation.
• Do not use the sensor outside the specified power supply and load range.
