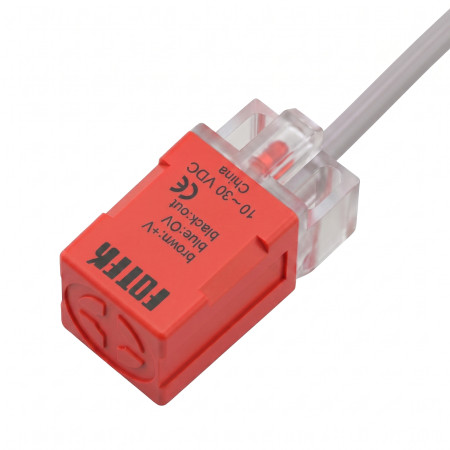

Inductive sensor PL-05N, NO/NPN 10-30VDC

The PL-05N inductive sensor is a non-contact sensor designed for detecting metal objects in industrial and automation applications. The design with a rectangular body allows for fixed mounting in structures and machine units. The sensor is equipped with a 100 cm cable and is suitable for tasks where output switching is required when approaching a metal target without mechanical contact.

Technical specifications

• Model: PL-05N
• Product type: inductive proximity sensor
• Design: long square body
• Output state: NO
• Output method: NPN
• Sensing distance: 5.0 mm
• Mounting method: flush mounting
• Scanning direction: horizontal
• Supply voltage: 10 to 30 V DC
• Response: 800 Hz
• Protection: IP67
• Operating temperature: -25 to +80 °C
• Operating humidity: 35 to 95% RH
• Maximum output current: 150 mA
• Maximum current consumption: 10 mA
• Residual voltage: less than 0.1 V
• Wire terminal: brown +10 to 30 V DC, blue 0 V, black output
• Protection circuits: short circuit and reverse polarity protection
• Body dimensions: 17 x 17 x 35 mm
• Cable length: 100 cm

Functions and features

• Non-contact inductive detection of metal objects.
• Rectangular body with mounting holes for secure mounting.
• LED status indication on the sensor body.
• Three-wire DC design with NPN transistor output.
• Recessed design for installation flush with the mounting element.
• IP67 rated design for use in industrial environments.

Ideal for

• Detection of the position of metal parts in machines and automation lines.
• Sensing the presence of metal parts in feeders, fixtures and conveyors.
• End and position sensing in industrial applications.
• Integration into control systems operating with DC power supply and NPN inputs.

Package contents

• Inductive sensor PL-05N with connection cable 100 cm

Why choose this product?

• Specifically designed electrical connections and a known output type facilitate integration into control circuits.
• The recessed design and compact square body support installation in limited spaces.
• IP67 protection and built-in protection circuits expand the possibilities of use in industrial operations.
• Fast response is suitable for sensing in applications with a higher frequency of state changes.

Installation and operating instructions

• Follow the wire connection according to the sensor terminals: brown wire power supply, blue wire 0 V, black wire output.
• Install the sensor in accordance with the required mounting method for flush mounting.
• During installation, ensure mechanical stability and protection of the cable against tension, breakage and abrasion.
• Before commissioning, verify the compatibility of the NPN output with the input of the downstream device.

Safety notice

• Only perform installation and connection when the power supply is disconnected.
• Incorrect wiring can lead to damage to the sensor or the connected control system.
• Observe the specified DC supply voltage and do not exceed the maximum output load.
• Installation into electrical and control equipment should be carried out by a person with appropriate professional qualifications.
