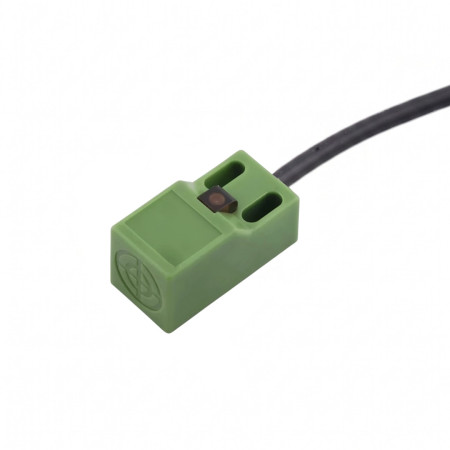

Inductive proximity sensor SN04-D1

The SN04-D1 inductive proximity sensor is used for non-contact detection of metal objects in automation, control and sensing circuits. It is a three-wire DC design intended for installation in machines, fixtures or mechanical assemblies where electrical indication of the presence of a metal target without mechanical contact is required.

Technical specifications

• Model: SN04-D1
• Product type: inductive proximity sensor for detecting metal objects
• Supply voltage: 5-30 V DC
• Design: DC, 3 wires
• Switching function: NO
• Nominal detection distance: 4 mm
• Body dimensions: 18 × 18 × 36 mm
• Mounting design: non-front-shielded
• Designated scanned object: metal

Functions and features

• Non-contact detection of metal objects without mechanical wear of the switching parts.
• Compact square design suitable for installation in limited space.
• Three-wire DC connection for integration into control and signaling circuits.
• The inductive sensing principle limits the response to metal targets.
• The cable connection is part of the sensor.

Ideal for

• Detection of the position of metal parts in machines and mechanisms.
• Industrial automation and simple control circuits.
• Sensing the presence of metal parts on fixtures and conveyors.
• Cooperation with relays, counters and PLC inputs within DC systems.

Package contents

• 1x inductive proximity sensor SN04-D1 with connection cable

Why choose this product?

• Clearly designated model SN04-D1 for DC power supply 5–30 V.
• The square compact design of 18 × 18 × 36 mm facilitates mechanical integration.
• Detection of metal objects without physical contact reduces mechanical stress during operation.
• The three-wire NO version is suitable for common control and sensing applications.

Installation and operating instructions

• Install the sensor so that only the designated metal object is within range and there is no unwanted interference from surrounding metal parts.
• Before connecting, verify the correct supply voltage and wire connection according to the circuit used.
• During installation, maintain the appropriate mechanical position of the sensing surface relative to the detected object.
• The bracket is not included in certain package contents and must be purchased separately if required for installation.

Safety notice

• Incorrect wiring can lead to damage to the sensor or the associated electronics.
• Carry out assembly and electrical connections with the power supply disconnected.
• The product is an electrical component intended for professional or instructed installation in low-voltage DC circuits.
• Protect the sensor from short-circuiting the wires and from overloading the output with an inappropriately connected load.
