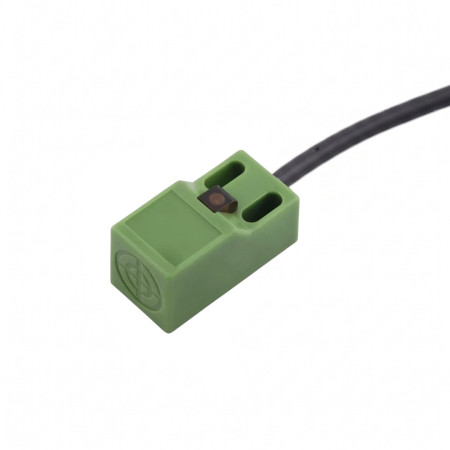

Inductive proximity sensor SN04-D2

The SN04-D2 inductive proximity sensor is used for non-contact detection of metal objects in automation, measurement and control applications. It is designed for DC power supply and provides a switching output for downstream control circuits, relays, counters or PLCs. The design with a cable and a compact square body allows installation in machines, fixtures and working mechanisms.

Technical specifications

• Model: SN04-D2
• Product type: inductive proximity sensor
• Supply voltage: 6 to 36 V DC
• Maximum output current: 100 mA
• Switching function: NC
• Output type: DC 2-wire
• Detection distance: 4 mm
• Designed for detecting metal objects
• Body dimensions: 18 x 18 x 36 mm
• Body material: plastic

Functions and features

• Contactless sensing without mechanical wear of the switching parts.
• Compact square design suitable for installation in limited space.
• Cable connection for fixed installation into the device.
• Inductive sensing principle for detecting metal objects.
• The variant designation D2 corresponds to the NC version in the SN04 series.

Ideal for

• Industrial automation and simple control circuits.
• Detection of the position of metal parts of machines and mechanisms.
• Use with PLCs, counters, relays and input modules.
• End and presence sensing of metal parts.

Package contents

• 1x inductive proximity sensor SN04-D2 with connection cable

Why choose this product?

• Specifically defined power supply range of 6 to 36 V DC for use in low voltage DC systems.
• NC switching design for applications requiring a normally closed state.
• Inductive metal detection without the need for mechanical contact with the object being sensed.
• The compact dimensions of 18 x 18 x 36 mm make it easy to integrate into the device design.

Installation and operating instructions

• Install the sensor so that only the designated metal object is within range.
• Before connecting, verify that the supply voltage and electrical parameters of the input or load match.
• During installation, ensure proper cable routing and protection against mechanical damage.
• For reliable operation, observe the correct electrical connection according to the circuit used.

Safety notice

• Incorrect wiring may result in damage to the sensor or connected equipment.
• Only carry out installation and connection when the power supply is disconnected.
• The product is an electrical component intended for integration into equipment, not for stand-alone operation without appropriate protection.
• When used in industrial or mechanical equipment, professional wiring is required.
