USB connector type A, wired, male

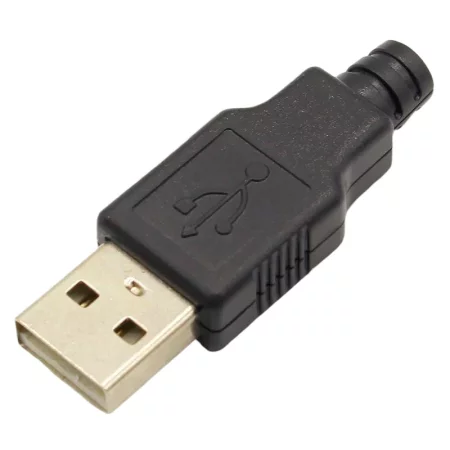

The USB cable connector type A in male design is designed for mounting on a wire and terminating USB power or data cables. The design consists of a 4-pin USB connector and a black plastic cover, which provides mechanical protection of the contacts and the cable connection point. The product is suitable for service, development and production applications where a standard USB interface with easy assembly is required.

Technical specifications

• Connector type: USB type A
• Design: male
• Number of pins: 4
• Interface: USB
• Rated voltage: 5V
• Rated current: max. 2 A
• Working frequency: low frequency use
• Assembly: by soldering
• Cable entry hole diameter: 3.2 mm
• Housing material: black plastic
• Composition: USB 4-pin connector + plastic cover

Functions and features

• Standard USB A male for common power and data applications
• 4-pin design corresponding to standard USB interface connection
• Cable design allows mounting on your own wire
• Plastic cover protects soldered joints from mechanical stress
• Suitable for repairs, cable production and prototype use
• Simple mechanical assembly after soldering the wires

Ideal for

• Production and repair of USB cables
• Service and assembly work in electronics
• 5V power supply with USB type A connector
• Data connection of devices with a standard USB A port
• Prototypes and custom electronic solutions

Package contents

• 1x USB connector type A male, 4pin

Why choose this product?

• Technically standard solution for USB cable termination
• Compact design suitable for practical installation
• Possibility of custom wiring according to application requirements
• Mechanical connection protection with two-part cover
• Suitable for professional and service use in the electronics industry

Installation and operating instructions

• Before assembly, verify the correct connection of all 4 pins according to the USB application used.
• Connect the wires by soldering, taking into account the heat resistance of the cable insulation.
• After soldering is complete, check for short circuits between the contacts.
• The cable must match the 3.2 mm entry hole diameter to ensure proper seating in the housing.
• After installation, replace the plastic cover to protect the contacts and soldered joints.

Safety notice

• The connector is designed for low-voltage USB applications with a voltage of 5 V.
• Do not exceed the rated electrical load of the connector.
• Perform the installation without connecting the power supply.
• The product is not intended for use in environments with excessive humidity or without adequate protection against mechanical damage.
