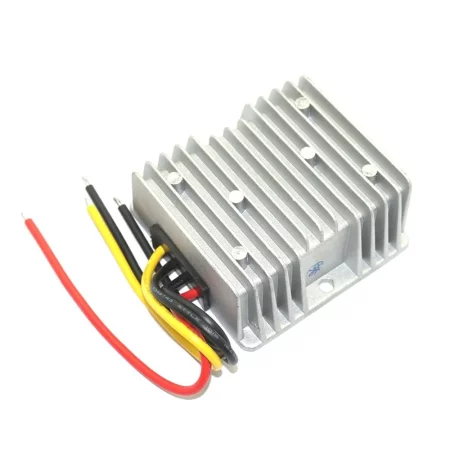

Voltage converter from 24V AC to 12V DC, 10A, 120W, IP68

The voltage converter is used to convert the input alternating voltage of 24 V AC to the output direct voltage of 12 V DC. It is intended for powering devices requiring 12 V DC from 24 V AC distributions. The metal design with fins supports heat dissipation and the IP68 protection allows use in environments with increased demands for resistance to water and dust ingress.

Technical specifications

• Product type: AC/DC voltage converter
• Input voltage: 24V AC
• Output voltage: 12V DC
• Maximum output current: 10 A
• Maximum power: 120 W
• Efficiency: 86%
• No-load current consumption: max. 110mA
• Protection: IP68
• Working temperature: -40~+80°C
• Ambient humidity: 0~95%
• Weight: 300g
• Certificates: CE, ROHS
• Design: aluminum body with cooling fins
• Connection: cable outlets

Functions and features

• Conversion from 24 V AC to 12 V DC
• Sealed design suitable for installations with increased requirements for resistance to moisture and dust
• Metal housing with fins for better heat dissipation
• Fixed wires for electrical connection

Ideal for

• Powering 12V DC devices from 24V AC distribution
• Technical and industrial installations
• Outdoor or humid environments where IP68 protection is required
• Applications where stable conversion between AC and DC power is required

Package contents

• 1x voltage converter 24 V AC to 12 V DC

Why choose this product?

• Meets the requirement of converting 24V AC to 12V DC
• Allows powering devices with higher current consumption up to 10 A
• Sealed IP68 design expands application possibilities in more demanding conditions
• The aluminum body with fins is structurally adapted for heat dissipation

Installation and operating instructions

• Before installation, verify that the input and output voltages match the requirements of the connected device.
• Make sure that the input and output wires are connected correctly.
• Install the inverter so that heat dissipation from the body surface is not restricted.
• We recommend that installation and connection be carried out by a qualified person.

Safety notice

• Incorrect wiring may result in damage to the inverter or connected equipment.
• The power must be disconnected during installation.
• Prevent short circuits at the output and mechanical damage to the supply wires.
• The device generates heat during operation, so it must be installed with regard to safe heat dissipation.
• The product is an electrical device and requires professional installation.
