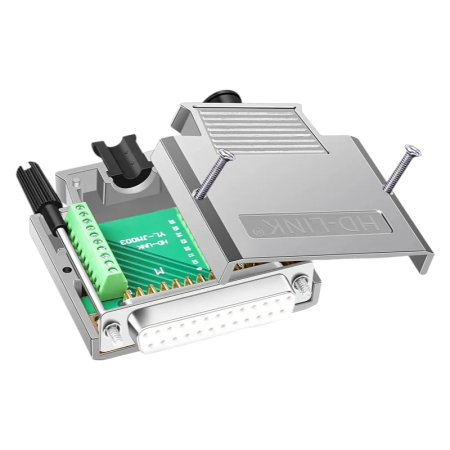

D-SUB connector DE25 (DB25) cable metal, female with screws/nuts, screw-type

The D-SUB DE25 (often referred to as DB25) female cable connector is designed for terminating multi-core cables in industrial and communication applications. The metal shielded body and screw closure ensure mechanical resistance and stable fastening of the connector, including cable strain relief.

Technical specifications

• Connector type: D-SUB DE25 (DB25)
• Design: female
• Number of pins: 25
• Contact arrangement: 2 rows
• Design: cable connector with screw cover
• Body: metal (shielded)
• Housing dimensions (approximate as shown in the picture): approx. 57 x 56 x 16 mm
• Cable grommets: 4 pcs (for diameters approx. 5 mm, 6 mm, 7.5 mm, 8.5 mm)

Functions and features

• Shielded metal housing to reduce the effects of electromagnetic interference in common installations
• Screw-on housing design for easy service and reassembly
• Cable strain relief using a grommet
• Possibility of solid locking to the counterpart using screws/nuts

Ideal for

• Production and repair of cabling with D-SUB 25 interface
• Industrial equipment, measuring technology and control systems
• Communication and service connections where mechanically resistant termination is required

Package contents

• 1x D-SUB DE25 (DB25) female cable connector in metal screw cover
• 4x cable grommets (approx. 5 mm, 6 mm, 7.5 mm, 8.5 mm)
• 2x screw
• 2x nuts

Why choose this product?

• Standard DE25 (DB25) format for broad compatibility with D-SUB counterparts
• Metal shielded design suitable for technical installations
• Practical accessories included for different cable diameters and mounting to the counterpart

Installation and operating instructions

• Before installation, select the appropriate grommet according to the cable diameter and ensure strain relief.
• After connecting the wires, check the correct pin assignment according to your connection and then close the cover by screwing it.
• For a mechanically stable connection, use the enclosed screws/nuts to secure it to the counterpart.
