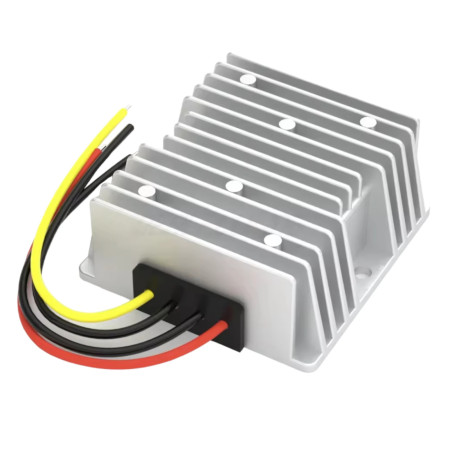

Voltage Converter from 10-25V DC to 30V DC, 3A, 90W, IP68

The NP-DTD1224S303 DC-DC voltage converter is used to convert a direct current input voltage in the range of 10-25V DC to an output voltage of 30V DC. It is designed to power DC devices that require a stabilized voltage of 30V DC and a current of up to 3A under correct wiring and operating conditions.

Technical Specifications

• Product type: DC-DC voltage converter
• Model: NP-DTD1224S303
• Input voltage: 10-25V DC
• Output voltage: 30V DC
• Output current: 3A
• Output power: 90W
• Certifications: CE, RoHS
• Protection rating: IP68
• Dimensions: 74x74x32 mm
• Weight: 250 g

Features and Properties

• Conversion of DC voltage from a lower input level to a 30V DC output.
• Designed for use in electrical and electronic circuits with DC power supply.
• Suitable for systems where an input voltage of 10-25V DC is available and the load requires 30V DC.
• Correct input and output polarity must be observed for proper operation.

Ideal For

• Power supply setups with a DC input in the range of 10-25V DC.
• Electronic projects requiring a 30V DC output voltage.
• Service and development applications where DC voltage conversion is needed.
• Integration into devices after verifying the electrical requirements of the connected load.

Package Contents

• 1x DC-DC voltage converter NP-DTD1224S303

Why Choose This Product

• Input range of 10-25V DC and output of 30V DC.
• The 3A output current allows powering loads corresponding to these values.
• The type designation NP-DTD1224S303 allows for clear identification of the converter during circuit design or maintenance.
• Suitable for applications where a direct 30V DC power source is not available.

Installation and Operating Instructions

• Before connecting, verify that the input voltage does not exceed the 10-25V DC range.
• The connected load must match the output values of 30V DC and 3A.
• Observe the correct polarity of both input and output connections.
• Install the converter in a way that prevents short circuits, mechanical damage, or contact with conductive objects.
• Requires professional installation by a person knowledgeable in working with DC power circuits.

Safety Warnings

• Incorrect wiring can cause damage to the converter, the connected load, or the power supply.
• Overloading, short circuits, or insufficient cooling may result in overheating.
• Do not operate the converter outside the specified 10-25V DC input range.
• Before handling, disconnect the power supply and verify the absence of voltage on the terminals or wires.
• The product is not intended for direct connection to mains voltage.
