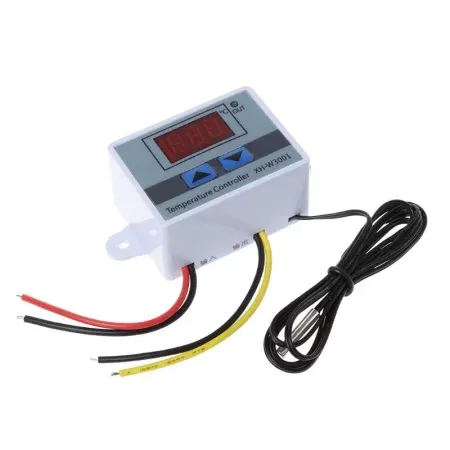

Digital thermostat XH-W3001 with external sensor -50°C - 110°C, 230V

Simple digital thermostat with output relay allows temperature control from -50°C ~ 110°C with 0.1°C resolution. For example, heating or cooling can be connected to one output. Both heating and cooling will then maintain the set temperature on the thermostat. The thermostat includes a resistive temperature sensor in a waterproof stainless steel housing with IP68 protection. Power supply 230V AC.

Power consumption: 3W

Adjustable temperature: -50°C ~ 110°C (0.1°C resolution)

Temperature measurement accuracy: ±1%

Temperature sensor: resistive NTC, 10kΩ, 0.5%

Switching contact: 250V AC 10A (with resistive load!)

Relay contact type: switching

Operating temperature: 0 ~ 60°C

Display color: red

Dimensions: 60 x 45 x 30 mm

Accessories: waterproof NTC sensor, 1m

INSTRUCTIONS:

Press the up button to display the switching temperature

A long press of the up button causes the value to flash, which you can then adjust.

Pressing the down button displays the trip temperature

Pressing the down button for a long time allows you to adjust the value.
