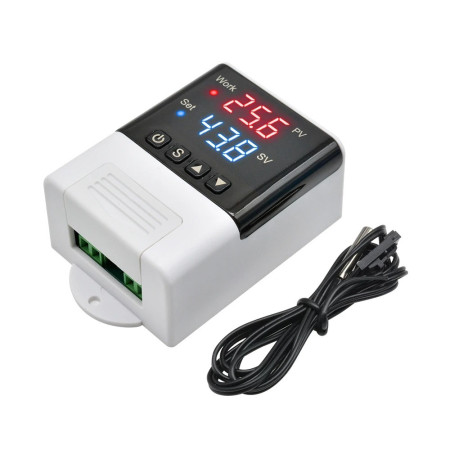

Digital thermostat DTC1110 with external sensor -40°C - +99°C, 230V
The DTC1110 is an advanced digital thermostat that provides a reliable solution for temperature control in a wide range of applications. Thanks to its modern design, high precision and easy operation, it is an ideal choice for homes, workshops, industrial operations and other environments.
Key Features:
- Wide application: Can be used in various fields, from home automation to industrial applications.
- Safe design: The shell made of non-flammable ABS material ensures safe and reliable operation.
- High accuracy: Temperature measurement with a deviation of only ±1 °C.
- Intelligent Control: Uses temperature feedback control for more precise control.
Specifications:
- Model: DTC1110
- Power: AC 110-220V
- Temperature range: -40 °C to +99 °C
- Measurement accuracy: ±1 °C (-40 °C to +70 °C)
- Sensor length: 100 cm
- Dimensions: 93 x 56 x 34 mm
- Output capacity:
- Cooling: 10 A/250 VAC
- Heating: 10 A/250 VAC
Simple setup and operation:
- Parameter adjustment: Set the desired temperature or adjust the parameters by holding the button.
- Heating and cooling modes: Automatic switching between modes according to the set temperature limits.
- Indicators: The digital display shows the current temperature and the status of the device.
Advanced features:
- Settings memory: Restore default settings when errors or power failure are detected.
- Alarms: Automatic signaling in case of overheating or sensor failure (display "HHH" or "LLL").
- Temperature calibration: The possibility of fine-tuning the measurement in the range of -10 °C to +10 °C.
Safety instructions:
- Make all wiring changes only when the power supply is disconnected.
- Keep the sensor away from power cables to avoid interference.
- Do not use the thermostat in a humid environment or near sources of strong electromagnetic interference.
Package Contents:
- 1x DTC1110 digital thermostat
- 1x temperature probe
- Voltage
- 220-240 V AC
- Starting temperature
- -50°C - 99 °C
- Waterproof grade
- IP22
- Probe type
- NTC 3950 10K, 1%
EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
Product Specification
Product Name: | Thermostat |
Model: | DTC1110 |
Input Voltage: | AC 110-220V |
Temperature Range: | -40°C to 99°C |
Accuracy: | ±1°C (-40 to 70°C) |
Sensor Cable Length: | 100 cm |
Sensor Probe Type: | NTC 10K |
Size: | 93mm × 56mm × 34mm |
Output: | 10A/250VAC (Cooling/Heating) |
Setting Method
Basic Temperature Setting
When the thermostat works normally, short press the S key, the set temperature value flashes, modify the set temperature parameter by ∧ or ∨ keys.
Advanced Parameter Setting
- Enter parameter modification mode: Press and hold the S key for more than 3 seconds
- Menu navigation: The digital tube displays the first menu item code
HC
- Menu item selection: Short press S again to adjust the code of the menu item
- Value adjustment: Short press the ∧ or ∨ key to increase or decrease the parameter setting value of the current menu
Factory Reset
Operating Instructions
Power On/Off
Turn Off: When the thermostat is working normally, press and hold the power key for more than 3 seconds to turn off the thermostat
Turn On: When the thermostat is off, short press the power key to turn on the thermostat
Display
When the thermostat works normally, the digital tube displays the current temperature measurement value.
Operating Modes
Heating Mode
- The Work indicator lights
- The relay normally open contact closes
- The Work indicator is off
- The normally open contact of the relay is disconnected
Cooling Mode
- The Work indicator lights
- The relay normally open contact is closed
- The Work indicator is off
- The normally open contact of the relay is disconnected
Indicator Status
Work Indicator
- ● On: working
- ● Flashing: delay
Set Indicator
- ● On: parameter setting
Repair System Data
System Check on Power-On
After the thermostat is powered on, first check whether the parameter settings are correct. If an error is detected, Er
is displayed. At this time, press any key to restore the default parameter settings and work normally. It is recommended to reset the parameters at this time.
Sensor Failure Alarm
Cause: When the temperature probe circuit has a short circuit or open circuit failure
Display: LLL
on digital tube
Solution: After the failure is removed, press any key to return to normal working mode
Behavior: The thermostat activates the probe failure alarm mode and closes all execution states
Over Temperature Limit Alarm
Cause: When the temperature measurement exceeds the temperature measurement range
Display: HHH
on digital tube
Solution: When the temperature returns to the normal measurement range, press any key to return to normal working mode
Behavior: The thermostat starts the over temperature limit fault alarm mode and closes all execution states
Safety Rules
⚠️ DANGER
- Correct Wiring: Strictly distinguish the sensor lead, power cord and output relay interface - cannot be connected wrong
- Relay Protection: The relay must not be overloaded
- Power Disconnection: All wiring changes must be made with the power disconnected
⚠️ CAUTION
- Environment: This thermostat is forbidden to be used in water or excessively humid environment
- Operating Conditions: Prohibited to be used in high temperature, strong electromagnetic interference and strong corrosive environment
ℹ️ NOTE
- Power Supply: The power supply voltage should be consistent with the voltage marked by the thermostat, and ensure the stability of the power supply voltage
- Installation: To avoid possible interference, it is recommended that the sensor leads be kept at an appropriate distance from the power line
Important Notice
For any doubts about installation or operation, contact a qualified electrician.
