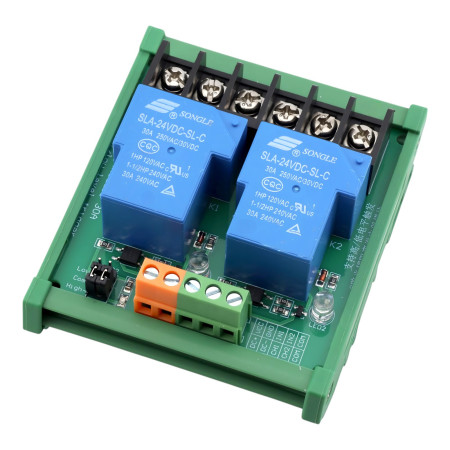

Two-channel relay SLA-24VDC-SL-C, 250V/30A on DIN rail

Professional two-channel relay module with SLA-24VDC-SL-C relay type and galvanic isolation using optocouplers. The module is designed for switching devices with voltage up to 250 V AC or 30 V DC and current up to 30 A. Thanks to the support of high and low trigger logic (High/Low Trigger), it is suitable for a wide range of applications in automation, smart home or industrial PLC systems. The robust design with the possibility of mounting on a DIN rail guarantees easy installation and reliable operation.

Technical specifications

• Supply voltage: 24 V DC
• Relay type: SLA-24VDC-SL-C
• Number of channels: 2
• Maximum switching current: 30 A
• Maximum switching voltage: 250 V AC / 30 V DC
• Control current: approx. 50 mA
• Trigger mode: low or high logic level (Low / High Trigger)
• Relay life: > 100,000 switching cycles
• Galvanic isolation: optocouplers on each channel
• Board material: FR-4 double-sided PCB
• Dimensions: 87 × 72 × 47 mm
• Weight: 95g
• Protection: IP20 (suitable for dry and clean environments or mounting in a control cabinet)
• Mounting: 35 mm DIN rail

Wiring output relays

• COM – relay common contact
• NO (Normally Open) – closes when the relay is activated
• NC (Normally Closed) – opens when the relay is activated

Connection example: Connect the phase wire to the COM contact and the output device to NO for classic switching when the relay is activated.

Functions and features

• Selectable HIGH/LOW trigger mode for universal compatibility
• Optocoupler isolation ensuring high immunity to interference and safe circuit separation
• Each channel with LED switching indication
• Ability to switch high loads up to 30 A
• Safe construction with insulating gaps and meeting international standards
• DIN rail mounting – quick and secure installation in the control cabinet
• Operating temperature: −40 to +85 °C

Ideal for

• PLC and automation systems in industry
• Control of pumps, fans and lighting in intelligent installations
• Smart homes and electronic projects
• Development and testing of control circuits in IoT and industrial applications

Package contents

• 1 × 2-channel 24 V relay module with optocoupler and DIN rail mounting

Why choose this product?

• Powerful relay SLA-24VDC-SL-C with high switching capacity up to 30 A
• Safe isolation using optocouplers on each channel
• High/Low trigger option – compatible with most PLCs and microcontrollers
• Robust design made of FR-4 material with long service life
• Easy DIN rail mounting for quick deployment in a control cabinet
