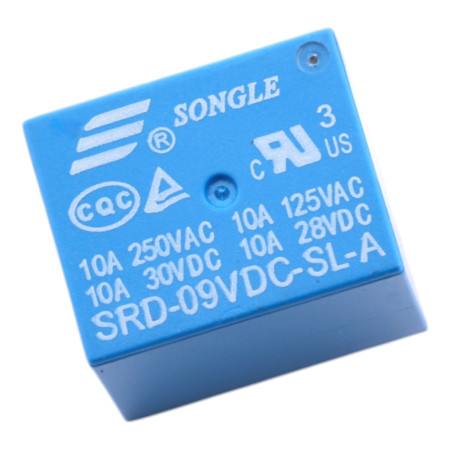

Relay SRD-09VDC-SL-A, 9V DC, 10A, IP65
zoom_out_map
chevron_left chevron_right

Relay SRD-09VDC-SL-A, 9V DC/250V AC 10A

1.43 €

1.43 € excl. VAT

1.434907 Tax excluded

i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Fully encapsulated relay with industrial quality high-current switching contact.

Contact type: switching
Maximum contact current: 10A
Maximum contact voltage: 250V AC / 30V DC
Power consumption: 0.36W
Coil resistance: 225Ω
Coil voltage: 9V

Dimensions: 15.5 x 19.1 x 15.3mm

Songle
AM1789
85364190
Voltage
9 V DC
Waterproof grade
IP65
Max. switching current
10 A
Max. switching voltage
250V AC /30 V DC

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
