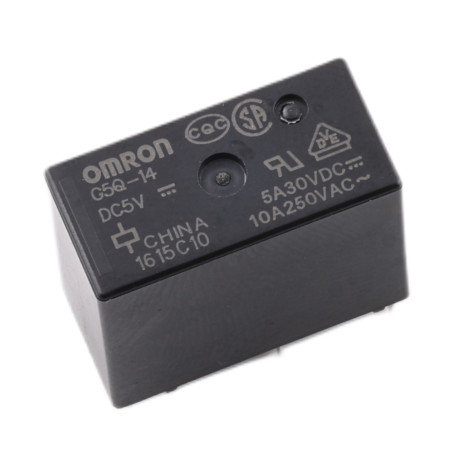

Relay G5Q-14 5V 10A Industrial Quality
zoom_out_map
chevron_left chevron_right

Relay G5Q-14, 5V DC/277V AC 10A

2.39 €

2.39 € excl. VAT

2.391512 Tax excluded

i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Fully encapsulated industrial quality relay.

Maximum contact current: 10A
Maximum contact voltage: 277V AC/30V DC
Consumption: 0.2W
Coil resistance: 63Ω
Coil voltage: 5V DC

Dimensions: 24.5x12.7x15.7mm

OEM
AM8717
85364190
Voltage
5 V DC
Waterproof grade
IP65
Number of pins
5-pin
Max. switching current
10 A
Max. switching voltage
277V AC /30 V DC
Contact type
SPDT
