Inductive sensor SP-05NB, NC/NPN 10-30VDC

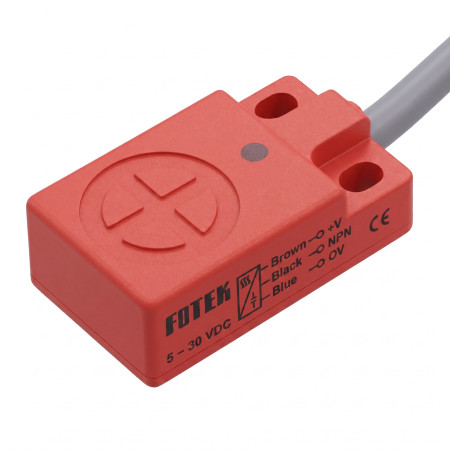

SP-05NB is a board-mounted inductive proximity sensor for non-contact detection of metal objects. It is intended for installation in fixed mechanical assemblies where output switching is required when the set sensing distance is reached. The design with a cable and a rectangular body with mounting holes facilitates installation in machines, fixtures and automation units.

Technical specifications

• Model: SP-05NB
• Series: PS Series Inductive Proximity Sensor
• Design type: plate type, plate design
• Output method: NPN
• Output state: NC
• Sensing distance: 5.0 mm
• Mounting method: flush
• Scanning direction: vertical
• Supply voltage: 10–30 VDC
• Response: 800 Hz
• Maximum output current: 150 mA
• Maximum current consumption: 10 mA
• Residual voltage: less than 0.1 V
• Power ripple arrester: less than 20% Vp-p
• Hysteresis: less than 10% of the sensing distance
• Thermal drift: less than 10 µm per °C
• Voltage drift: less than 1 µm per V
• Protection circuits: short circuit and reverse polarity protection
• Working temperature: -25 °C to +80 °C
• Operating humidity: 35% to 95% RH
• Protection: IP67
• Sensing surface color for NPN: red
• Body dimensions: 30.5 × 18.0 mm
• Body length without cable: 10.0 mm
• Cable length: 200 cm
• Mounting holes: 2 holes

Functions and features

• Non-contact inductive detection of metal objects without mechanical wear of the sensing part.
• Rectangular plate design suitable for fastening with screws.
• Recessed sensor design for mounting flush with the surrounding material.
• NC output for applications where a closed state in the rest position is required.
• Three-wire DC connection according to the diagram for the NPN variant.
• Cable outlet from the sensor body for fixed connection in the installation.
• IP67 protection for use in industrial environments.

Ideal for

• Detection of metal parts in automation technology.
• Position control in fixtures, conveyors and machinery.
• End and presence sensing in industrial applications.
• Installations with limited mounting space where a cylindrical sensor design is not suitable.

Package contents

• Inductive proximity sensor SP-05NB with cable.

Why choose this product?

• Verified technical parameters for DC power supply 10–30 V.
• Combination of plate body, flush mounting and vertical sensing for precise mechanical integration.
• NC NPN version for specific requirements of control and signaling circuits.
• Integrated short-circuit and reverse polarity protection increases wiring durability.
• IP67 protection and a wide operating temperature range support use in industrial operations.

Installation and operating instructions

• Follow the wiring diagram for the NPN DC sensor.
• Install the sensor as a flush-mounted type to maintain the declared sensing properties.
• The supply voltage must be within the range of 10–30 VDC.
• Connect the load in accordance with the NPN output connection and do not exceed the maximum output current.
• During installation, ensure mechanical stability and protection of the cable against pulling, bending and damage.
