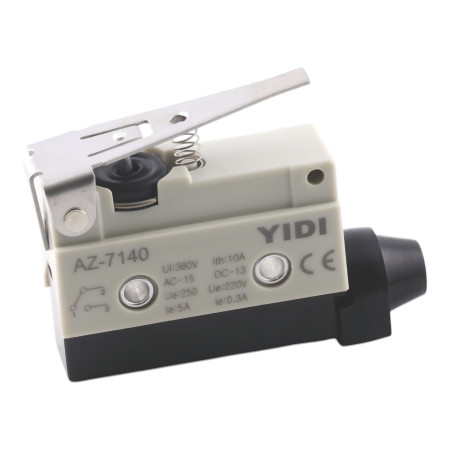

Limit switch AZ-7140, IP65, 250V 10A

The AZ-7140 mechanical lever switch is designed for switching and sensing end positions in industrial and automation applications. It is used as a limit switch to detect movement, position or presence of mechanical parts where repeatable switching and simple mounting are required.

Technical specifications

• Designation: AZ-7140
• Type: limit switch with lever
• Rated current: 10 A
• Rated voltage: 250 V AC
• Contacts: NO, NC
• Control: mechanical lever

Functions and features

• Mechanical lever control for sensing end positions and movement
• Suitable for switching AC voltage in common industrial circuits
• Design designed for repeated switching in automation assemblies

Ideal for

• End stops and position sensing in single-purpose machines
• Automation and control systems
• Detection of the position of covers, doors, slides and mechanisms

Package contents

• 1x limit switch AZ-7140

Why choose this product?

• Standard industrial microswitch design with lever control
• Rated load 10 A at 250 V AC for common switched circuits
• Suitable as a limit switch for mechanical position detection

Installation and operating instructions

• When installing, ensure that the switch is securely attached and the lever is positioned correctly relative to the controlled element.
• Make the connection with the power supply disconnected and with due regard to the wire sizing and fuse protection.
• For long-term reliable operation, avoid permanent overloading and inappropriate mechanical stress on the lever.

Safety notice

• The product operates at 250 V AC, incorrect installation may result in electric shock
• Installation and service should only be carried out by a suitably qualified person.
• Before working on the wiring, always disconnect the power supply and verify that it is de-energized.
