Inductive proximity sensor SND04-P

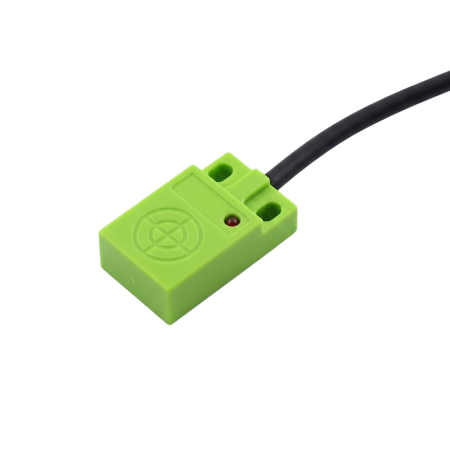

The ROKO SND04-P inductive proximity sensor is used for non-contact detection of metal objects in industrial and automation applications. The version with PNP NO output is intended for direct current power supply 10–30 V DC and for installation in places where switching is required depending on the presence of a metal target. The sensor is equipped with a connection cable and mounting holes in the sensor body.

Technical specifications

• Model: ROKO SND04-P
• Sensor type: inductive proximity sensor
• Supply voltage: 10-30 V DC
• Output: PNP NO
• Switching state: normally open
• Detection distance: 4 mm
• Protection level: IP67
• For detecting metal objects
• 3-wire connection
• Wire colors marked on the label: BN +10–30 V, BK PNP NO, BU 0 V
• Sensor body with mounting holes
• Indicator LED on the front
• Declared circuit protection: reverse polarity protection and output short circuit protection

Functions and features

• Non-contact sensing of a metal target without mechanical wear of the switching part
• PNP NO output logic for direct connection to DC-powered control circuits
• Compact square design suitable for installation in machines, fixtures and automation units
• Hard-wired cable for direct electrical connection
• Front status indication via LED
• IP67 protection for use in operating environments with increased demands on dust and moisture resistance

Ideal for

• Industrial automation
• Positional detection of metal parts
• Sensing the presence of metal parts on machines and conveyors
• Integration into control and signaling circuits
• Installation in devices with 10–30 V DC power supply

Package contents

• Proximity sensor ROKO SND04-P with connection cable
• Mounting screws and nuts

Why choose this product?

• Clearly marked model and wiring directly on the sensor label
• Combination of 10-30V DC power supply and PNP NO output for general control applications
• Inductive sensing principle designed for detecting metal objects
• IP67 protection and integrated protection circuits listed by the manufacturer on product materials
• Design with mounting holes allows for a solid mechanical attachment

Installation and operating instructions

• Before connecting, verify the correct polarity of the power supply and the function of the individual wires according to the markings BN, BK and BU.
• Install the sensor so that it detects only the metal target in the working area.
• Route the cable away from places where there is a risk of mechanical damage, pulling or kinking.
• Perform installation with the power disconnected.
• When integrating into a control system, verify the input's compatibility with the PNP NO signal.

Safety notice

• The product is an electrical component for DC power supply; incorrect connection may cause damage to the sensor or downstream circuits.
• Do not connect the sensor to a voltage outside the range of 10–30 V DC.
• Avoid shorting wires and do not install under voltage.
• Installation in industrial equipment must be carried out by a qualified person.
• When used in safety-critical functions, it is necessary to verify whether the sensor is intended for such use in the device documentation.
