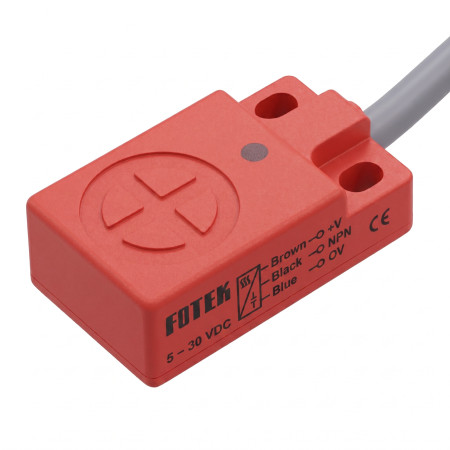

Inductive sensor SP-05N, NO/NPN 10-30VDC

The PS SP-05N series inductive proximity sensor is a non-contact sensor for detecting metal objects in industrial and automation applications. The board design with mounting holes allows for a firm attachment to the structure of the machine or device. The sensor is designed for DC power supply and uses an NPN output in the NO version.

Technical specifications

• Product line: PS Series Inductive Proximity Sensor
• Model: SP-05N
• Design type: plate type, plate design
• Sensing principle: inductive proximity sensor
• Output method: NPN
• Output state: NO
• Sensing distance: 5.0 mm
• Mounting method: flush
• Scanning direction: vertical
• Supply voltage: 10 to 30 VDC
• Maximum output current: 150 mA
• Maximum current consumption: 10 mA
• Residual voltage: less than 0.1 V
• Leakage current: less than 0.8 mA
• Hysteresis: less than 10% of the sensing distance
• Temperature drift: less than 10 µm per °C
• Voltage drift: less than 1 µm per V
• Protection circuit: short circuit and reverse polarity protection
• Working temperature: -25 °C to +80 °C
• Operating humidity: 35% to 95% RH
• Protection: IP67
• Response frequency: 800 Hz
• Body dimensions: 30.5 x 17.5 x 10.0 mm
• Cable length: 200 cm
• Connection: cable outlet

Functions and features

• Non-contact detection of metal objects without mechanical wear of the sensing part.
• Board housing with mounting holes for fixed mounting.
• Recessed sensing design for installation in a metal environment according to the manufacturer's installation conditions.
• Three-wire DC connection with NPN output.
• IP67 rated design for use in industrial environments.

Ideal for

• Detection of the position of metal parts of machines and mechanisms.
• Sensing the presence of metal parts in automation lines.
• Industrial control systems, fixtures and production equipment.
• Applications where a compact, flat sensor design is required.

Package contents

• Inductive proximity sensor PS series SP-05N with cable

Why choose this product?

• Clearly defined electrical and mechanical parameters for DC applications.
• Compact panel design for installation in limited space.
• NPN NO output suitable for common industrial control inputs.
• Short circuit and reverse polarity protection increases wiring durability.
• IP67 protection allows for use in more demanding operating environments.

Installation and operating instructions

• When connecting, follow the wiring diagram for the DC version: brown wire for positive power supply, blue wire for negative pole, black wire as output.
• Perform the installation taking into account the recessed design of the sensor and the sensing direction.
• The power supply and the load input circuit must match the sensor parameters.
• Before commissioning, verify correct polarity and output connection.

Safety notice

• Incorrect wiring may cause damage to the sensor or connected equipment.
• Disconnect the power supply during assembly and connection.
• Do not exceed the permitted supply voltage and maximum output current.
• Installation in industrial equipment should be carried out by a person with knowledge of the relevant electrical wiring.
• Do not subject the cable to excessive tension, kinking or mechanical damage.
