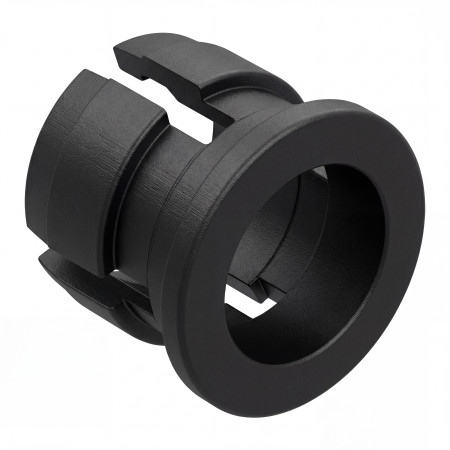

Socket for 5mm LED, plastic

The plastic panel mount for 5mm LEDs is used to mechanically fasten the LED diode into a hole in the panel or housing. The design with a flexible locking (clip) allows for quick assembly without the use of adhesives and at the same time improves the stability of the LED mounting in the application.

Technical specifications

• Designed for: 5 mm LEDs
• Mounting type: panel (snap-on clip)
• Material: ABS plastic
• Color: black
• Recommended mounting hole diameter: 6.1 mm
• Operating temperature: -25 to +75 °C

Functions and features

• Mechanical mounting of 5mm LED into the panel with repeatable seating
• Snap-on design for quick installation in a prepared hole
• Electrically non-conductive material suitable for common low-voltage LED applications
• LED protection against direct stress on the terminals when handling the panel

Ideal for

• Indicator LEDs in instrument panels and covers
• Prototypes, test fixtures and laboratory equipment
• Control panels, cabinet doors and low voltage cabinet applications

Package contents

• 1 pc plastic socket for 5mm LED

Why choose this product?

• Simple and quick panel assembly without additional fasteners
• Standard design for 5mm LED with defined mounting hole
• ABS plastic with declared operating temperature range

Installation and operating instructions

• Prepare a 6.1 mm diameter hole in the panel and remove any burrs.
• Insert the sleeve into the hole and snap with the spring clips.
• Insert the 5 mm LED into the socket and ensure proper seating; make the electrical connection according to the LED wiring (series resistor, etc.).
