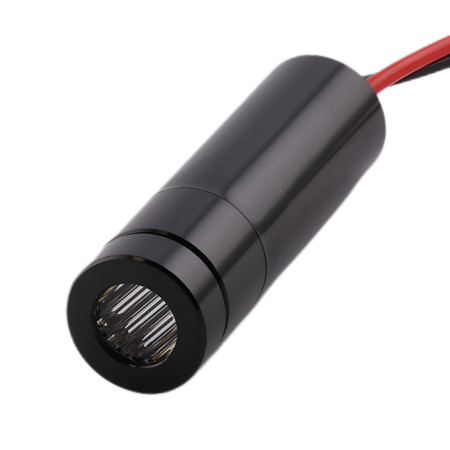

Laser module violet, 20mW, 405nm, cross

Powerful laser module with a wavelength of 405 nm, optical power of 100 mW and a wide beam angle of 110°. The APC power control variant ensures stable optical output even with variable supply voltage. Thanks to its compact dimensions and 3-5 V power supply option, it is suitable for industrial, laboratory and imaging systems.

Technical specifications

• Wavelength: 405 nm (blue/violet)
• Optical power: 20 mW
• Lens: PMMA
• Beam angle: 110°
• Lens shape: cross
• Control electronics: APC (Automatic Power Control)
• Operating voltage: 3-5V DC
• Operating current: up to 55mA
• Protection: IP20
• Module dimensions: 13 × 13 × 42 mm
• Cable length: 100 mm
• Operating temperature: –10 to +40 °C
• Storage temperature: –40 to +85 °C
• Certification: CE, RoHS
• Mean time to failure (MTTF): > 8,000 h
• Weight: 18g

Functions and features

• APC control ensures stable performance regardless of supply voltage changes.
• Wide 110° beam angle suitable for projection, lighting and optical sensors.
• PMMA lens for homogeneous beam dispersion and low weight.
• Stable operation, low heat loss and long service life.
• Easy integration thanks to 3-5 V power supply.

Construction

• The laser module must not be conductively connected to any metal part of other equipment – it must be electrically insulated.
• The reason is the design of a semiconductor laser diode, one pole of which is connected directly to a metal housing.
• Use antistatic equipment during assembly, as the laser diode can be damaged by even a small electrostatic discharge.
• Avoid contact with radiators, water pipes and other conductive objects - they can cause unwanted grounding.
• Never connect the module metal to another metal component of the device.

Cooling

• The laser module does not require additional cooling – its heat losses are low.
• When properly fastened, there is no overheating or shortening of the service life.
• It can be securely mounted in a bracket or housing without the need for active heat dissipation.

Ideal for

• Industrial sighting and indication systems
• Optical sensors and measuring technology
• Laboratory experiments and fluorescence
• Projection and imaging applications with large beam coverage

Package contents

• 1× laser module 405 nm, 20 mW

Why choose this product?

• Stable performance thanks to APC control.
• Wide 110° beam angle for applications requiring high optical dispersion.
• Compact design, easy integration and long service life.
• CE and RoHS certification, quality design and reliable operation.
