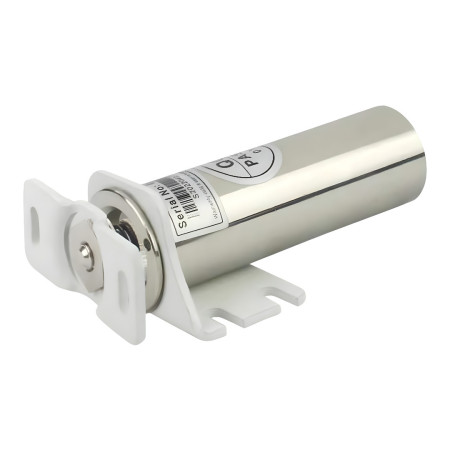

Electromagnetic door lock LY305, 150kg

The LY305 electric bolt lock is a compact and robust electromagnetic lock designed for drawers, cabinets, filing cabinets and other storage spaces. Thanks to its all-metal construction, high mechanical resistance and power failure unlocking mode, it is suitable for access control systems and simple furniture security in offices, archives and homes.

Technical specifications

• Model: LY305
• Lock type: electromagnetic bolt lock
• Supply voltage: 12 V DC
• Working current: 100 mA
• Operating mode: powered = locked, no power = unlocked
• Mechanical tensile strength: more than 150 kg
• Material: all-metal design, nickel-plated surface
• Lock body dimensions: 64.1 × 40 × 25 mm
• Counterpiece dimensions: 42 × 17.5 mm
• Weight: 180g
• Lifespan: 300,000 switching cycles
• Protection: IP20

Functions and features

• Electromagnetic bolt with high mechanical strength
• Safe mode – automatic unlocking during power failure
• All-metal construction ensures long life
• Nickel-plated surface for increased corrosion resistance
• Compact dimensions suitable even for limited installation space
• Easy integration into access and control systems

Ideal for

• Drawers and filing cabinets
• Storage and archive cabinets
• Wardrobes and lockers
• Furniture applications in offices and homes
• Access control systems with external control

Package contents

• Electric lock LY305
• Counterpiece with latch
• Mounting screws

Why choose this product?

• High mechanical resistance up to 150 kg
• Safe operation during power failure
• All-metal, durable construction
• Long service life and reliable operation
• Compact dimensions and easy installation
