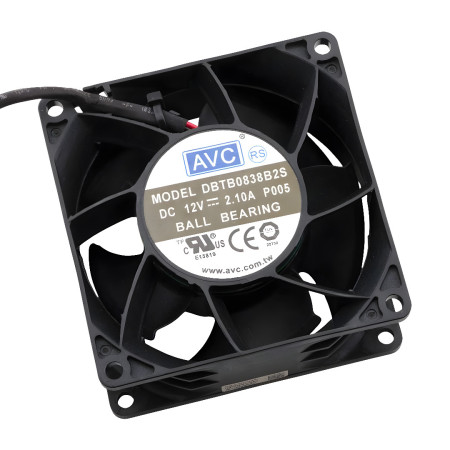

Fan 80x80x38mm, 12V DC, IP20, DBTB0838B2S

DBTB0838B2S is a powerful axial fan of 80 × 80 × 38 mm format designed for cooling devices with higher thermal load, where high airflow is required and at the same time the possibility of speed control using a PWM signal. It is typically used in server cabinets, industrial distribution boards, network elements and for blowing dense passives, where higher static pressure is also important.

Technical specifications

• Model: DBTB0838B2S
• Dimensions: 80 × 80 × 38 mm
• Power supply: 12V DC
• Speed control: 4-wire PWM (4-pin)
• Rated current: 2.10 A
• Power consumption: 25.2 W
• Speed: 1000–8000 rpm (±10%)
• Airflow: 114,012 CFM
• Static pressure: 402 Pa
• Noise level: 61 dBA
• Bearings: dual ball bearing
• Lifespan: up to 40,000 hours (according to manufacturer's specifications)
• Operating temperature: -10°C to +70°C

Functions and features

• High speed and static pressure for applications with higher flow resistance (dense passives, filters, perforations, shafts)
• PWM control allows power control based on temperature or system requirements
• A 4-wire connection typically includes power, ground, tach output, and PWM input
• Ball bearings for long-term operation and higher durability in industrial conditions

Ideal for

• Server cabinets, rack systems and data centers
• Industrial switchboards and control panels
• Cooling of network elements (switches, routers) and computing nodes
• Blowing coolers, passives and power modules with higher thermal output

Package contents

• Fan DBTB0838B2S

Why choose this product?

• Compact industrial format 80 × 80 × 38 mm with high performance
• PWM speed control for integration into temperature-controlled systems
• Suitable parameters for applications requiring higher static pressure
• Ball bearing design for long-term operation

Installation and operating instructions

• When installing, observe the direction of air flow according to the arrow on the fan frame.
• Provide an appropriate 12 V DC power supply with sufficient current reserve
• For PWM control, use a compatible control signal according to the 4-wire fan standard
• In applications with higher contamination, we recommend using a filter and regular maintenance to maintain flow.

Safety notice

• The fan is a rotating device: do not interfere with the blades during operation and provide mechanical protection in the available installations
• Before connecting, disconnect the power supply and verify the correct polarity of the 12 V DC
• Observe operating temperature conditions and ensure sufficient cooling of surrounding components
