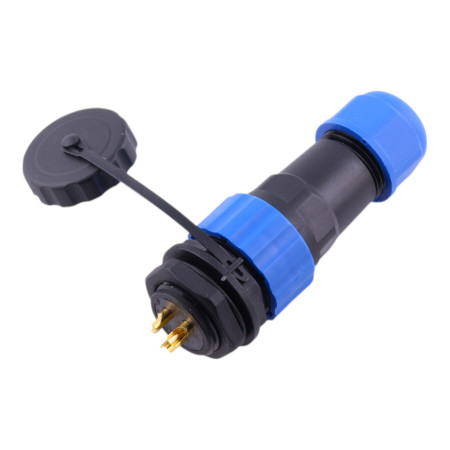

SP16 panel mount, IP68 waterproof cable connector

Waterproof panel connector for wires with a diameter of 5.5 - 8mm. Gold-plated contacts.

Number of pins:

9.02 €

9.02 € excl. VAT

9.019418 Tax excluded

In stock

Quantity:

Download PDF

Waterproof panel connector for wires with a diameter of 5.5 - 8mm. Gold-plated contacts.

Type: SP16	2-pin	3-pin	4-pin	5-pin	7-pin	9-pin
Contact diameter	1.8mm	1.8mm	1mm	1mm	1mm	1mm
Rated current	10A	5A	5A	5A	5A	5A
Rated voltage	250V	250V	250V	250V	250V	250V
Contact resistance	2mΩ	2mΩ	5mΩ	5mΩ	5mΩ	5mΩ
Insulation resistance	2000mΩ	2000mΩ	2000mΩ	2000mΩ	2000mΩ	2000mΩ

Maximum current: 10A

Maximum voltage: 250V AC

Protection: IP68

Working temperature: -20 - 110°C

Relative humidity: 90% - 95%

Material: Polyamide

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
