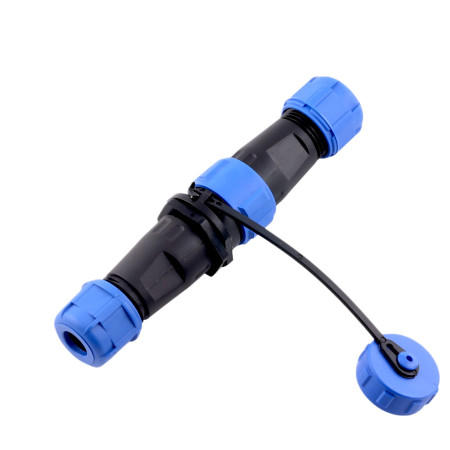

SP1310/SP1311 IP68 Waterproof Cable Connector
zoom_out_map
chevron_left chevron_right

SP1310/SP1311, IP68 waterproof cable connection connector

Waterproof docking connector for wires with a diameter of 3 - 6.5 mm. Gold plated contacts.

4.17 €

4.17 € excl. VAT

4.168064 Tax excluded

i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Waterproof docking connector for wires with a diameter of 3 - 6.5 mm. Gold plated contacts.

Type: SP1310/SP1311 2-pin 3-pin 4-pin 5-pin 6-pin 7-pin 9-pin
Average contacts 1.6mm 1.6mm 1 mm 1 mm 1 mm 1 mm 0.7mm
Maximum current 13A 13A 5A 5A 5A 5A 3A
Maximum voltage 250V 250V 250V 250V 125V 125V 125V
Contact resistance 2mΩ 2mΩ 5mΩ 5mΩ 5mΩ 5mΩ 5mΩ
Max. conductor cross-section 1.5mm 2 1.5mm 2 0.5mm 2 0.5mm 2 0.5mm 2 0.5mm 2 0.35mm 2

Protection: IP68

Working temperature: -35 - 110°C

Relative humidity: 90% - 95%

Material: Polyamide

Package contents: 1x cable socket (female), 1x cable connector (male)

OEM
AM2736-2-PI
85369010
Housing material
Plastic
Waterproof grade
IP68

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
